🚀 How to use

1. Install gotrackit

1.1. Pre-dependency libraries

Before installation, make sure that the following pre-dependency libraries are available in the Python environment. The versions in brackets are used by the author (based on Python 3.11). For reference only

  • geopy(2.4.1)

  • gdal(3.4.3 or 3.8.4)

  • shapely(2.0.3)

  • fiona(1.9.5)

  • pyproj(3.6.1)

  • geopandas(0.14.3)

  • networkx(3.2.1)

  • pandas(2.0.3)

  • numpy(1.26.2)

  • keplergl(0.3.2)

Note

As of gotrackit-v0.3.5, the latest v1.0.0 of geopandas is not supported. Please upgrade to the latest version gotrackit or use geopandas-v0.14.3

It is recommended to use Anaconda and python3.11 to install the above dependencies

If the installation of GDAL fails, it is recommended to install the whl file directly. Download address: https://github.com/cgohlke/geospatial-wheels/releases

_images/gdal_wheel.png

1.2. Install gotrackit

Install using pip

pip install -i https://pypi.org/simple/ gotrackit

Already installed, you can upgrade the existing version

pip install --upgrade -i https://pypi.org/simple/ gotrackit

2. Features Overview of gotrackit

2.1. Overview of modules

Includes five modules:

2.2. Data requirements

The data involved in these five modules are as follows:

2.2.1. Road network data

The road network consists of link layer files and node layer files, and there is an association between the two files. Xi’an sample road network

Note

The coordinate system of the road network node layer data and link layer data must be: EPSG:4326

(1) Road network-node layer

Generally, it is a shp file or geojson file. The field requirements of the road network node layer file are as follows:

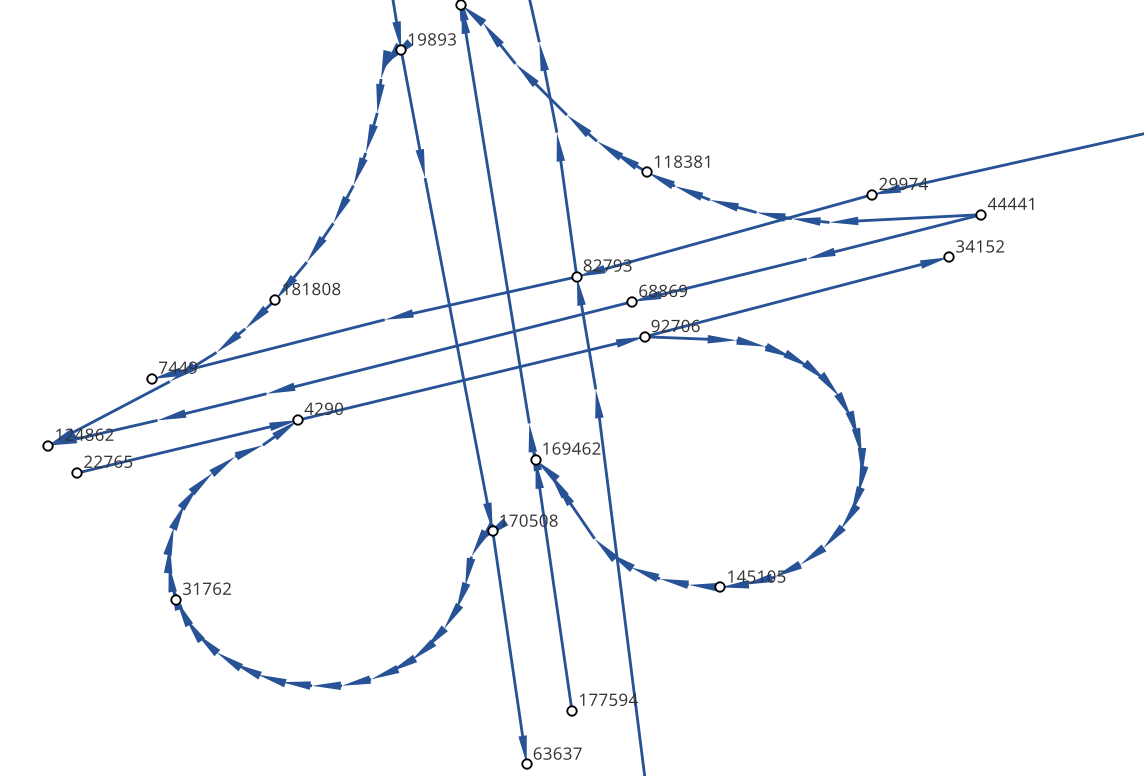

node layer sample data

node_id

geometry

4290

POINT (108.84059274796762 34.20380728755708)

7449

POINT (108.83996876020116 34.20398312458892)

19893

POINT (108.8410333043887 34.20538952458989)

22765

POINT (108.8396462868452 34.20358068920948)

29974

POINT (108.84304743483109 34.20477124733548)

31762

POINT (108.84007099594207 34.20303962600771)

34152

POINT (108.84337595161946 34.20450390550994)

44441

POINT (108.8435151462407 34.204686083275455)

63637

POINT (108.8415703783543 34.20233450491169)

68869

POINT (108.842021912175 34.20431362229388)

82793

POINT (108.84178453991281 34.204420171642816)

91199

POINT (108.84129068661863 34.20558291058989)

92706

POINT (108.84207500541686 34.2041637658475)

118381

POINT (108.84208596575294 34.20486654570958)

122487

POINT (108.84210722600966 34.20202954576994)

124862

POINT (108.83952308374874 34.20369843029777)

145105

POINT (108.84239758378014 34.20309169152201)

166381

POINT (108.84139277469502 34.20644679433629)

169462

POINT (108.84160833213731 34.20363712972413)

170508

POINT (108.841425074665 34.203330912749905)

177594

POINT (108.84176365682967 34.202564765029564)

181808

POINT (108.84049555540867 34.20432194107051)

191714

POINT (108.84048418194278 34.208751404812496)

198856

POINT (108.84627615033686 34.205495498912406)

199563

POINT (108.84081270761097 34.208564048548254)

Note

The geometry field of the node layer table does not allow the MultiPoint type to appear, and does not support three-dimensional coordinates.

2.2.2. GPS positioning data

in gotrackit, we call positioning data as GPS data or trajectory data

GPS data field requirements are as follows:

GPS data field description

Field name

Field type

Field description

agent_id

string

Vehicle unique code, to be precise, this field marks a complete trip of the vehicle

lng

float

Longitude

lat

float

Latitude

time

string

Positioning timestamp

Other non-essential fields

…

…

Sample data is as follows:

GPS sample data

agent_id

lng

lat

time

22413

113.8580665194923

22.774040768110932

2024-01-15 16:00:29

22413

113.85816528930164

22.774241671596673

2024-01-15 16:00:59

22413

113.86015961029372

22.77713838336715

2024-01-15 16:01:29

22413

113.86375221173896

22.779334473598812

2024-01-15 16:02:00

22413

113.864148301839

22.77953193554016

2024-01-15 16:02:29

22413

113.86793876830578

22.78092681645836

2024-01-15 16:02:59

22415

113.8580665194923

22.774040768110932

2024-01-15 16:00:29

22415

113.85816528930164

22.774241671596673

2024-01-15 16:00:59

22415

113.86015961029372

22.77713838336715

2024-01-15 16:01:29

22415

113.86375221173896

22.779334473598812

2024-01-15 16:02:00

22415

113.864148301839

22.77953193554016

2024-01-15 16:02:29

3. Road network module

This module provides a series of methods to optimize road networks, or to help you convert road networks from other data sources into gotrackit standard road networks. For gotrackit’s standard road network data structure, see: Road network data requirements

Use the Road network optimization tool, first import the relevant modules from gotrackit:

import gotrackit.netreverse.NetGen as ng

3.1. Road network optimization

The following optimization operations are not mandatory, you can choose to use them according to your own road network situation

You may want to use the nv.create_node_from_link function to generate node layers and topological associations to obtain standard road network data, but nv.create_node_from_link may report an error because your road network link layer data may contain Multi types or have z coordinates or the link object contains a large number of overlapping points. You can use the static method clean_link_geo of the nv class to eliminate z coordinates and multi types

The sample code is as follows:

 1if __name__ == '__main__':
 2
 3    # Read data
 4    df = gpd.read_file(r'./link.shp')
 5
 6    # Process geometry
 7    # l_threshold means merging the vertex points with a distance less than l_threshold meters in the line-geo, simplifying the road network, and eliminating overlapping vertex points
 8    # l_threshold is recommended to be 1m ~ 5m, too large will cause distortion of line details
 9    # plain_crs is the plane projection coordinate system to be used
10    link_gdf = ng.NetReverse.clean_link_geo(gdf=df, plain_crs='EPSG:32649', l_threshold=1.0)

3.1.2. repair the connectivity of the road network

If you already have a road network link layer and node layer (and the field and topological association relationship meet the requirements of this algorithm package), you can use the following method to check the connectivity of the road network

The sample code is as follows:

 1if __name__ == '__main__':
 2    link_gdf = gpd.read_file(r'./Link.shp')
 3    node_gdf = gpd.read_file(r'./Node.shp')
 4
 5    # net_file_type: shp or geojson
 6    nv = ng.NetReverse(net_file_type='shp', conn_buffer=0.8, net_out_fldr=r'./data/input/net/test/sz/')
 7    new_link_gdf, new_node_gdf = nv.modify_conn(link_gdf=link_gdf, node_gdf=node_gdf, book_mark_name='sz_conn_test', generate_mark=True)
 8
 9    print(new_link_gdf)
10    print(new_node_gdf)

Under net_out_fldr, a road network file and an xml spatial bookmark file will be generated after the connectivity repair is completed. Importing the xml file into QGIS can view the repaired points to check whether all repairs are reasonable.

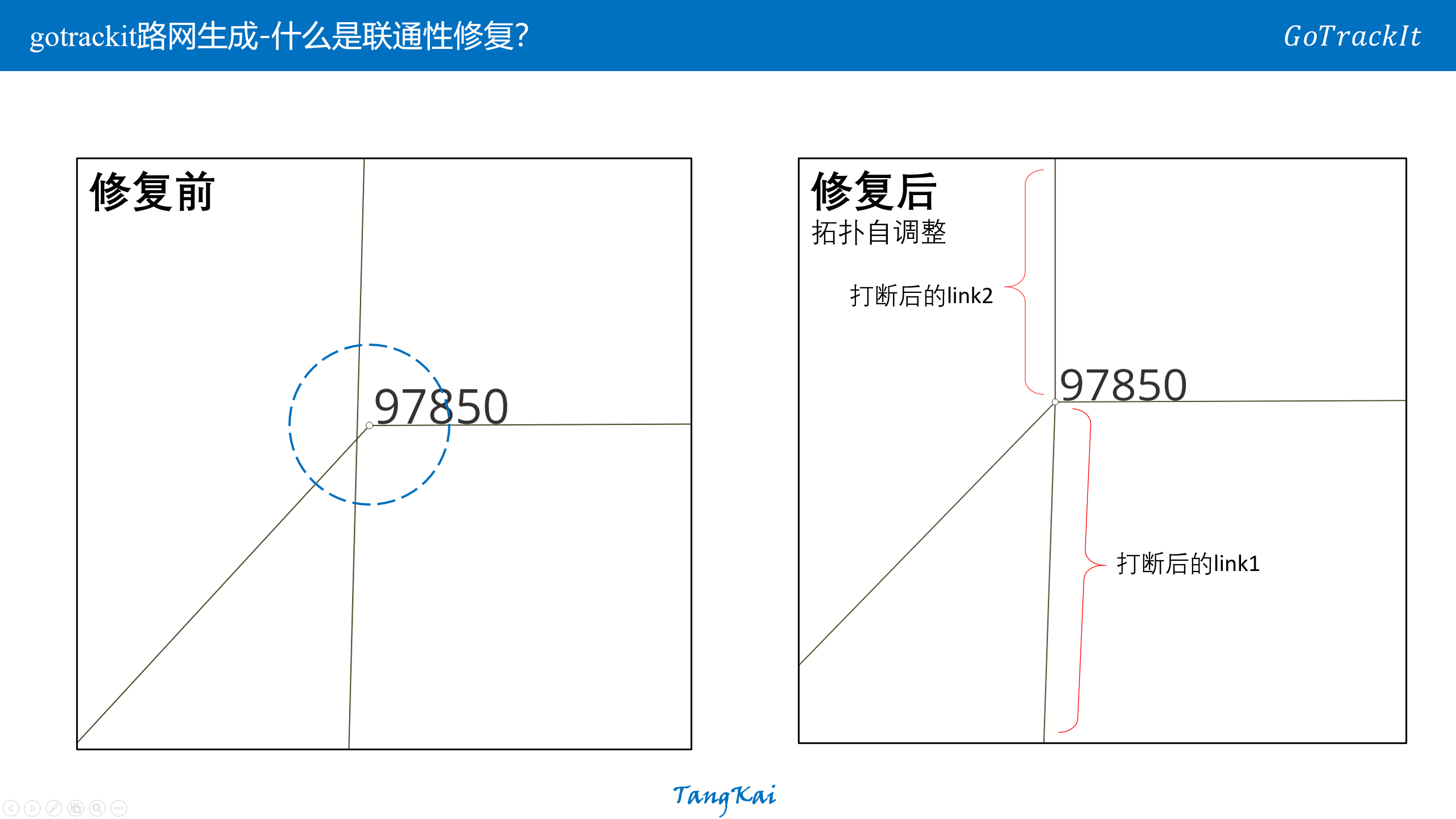

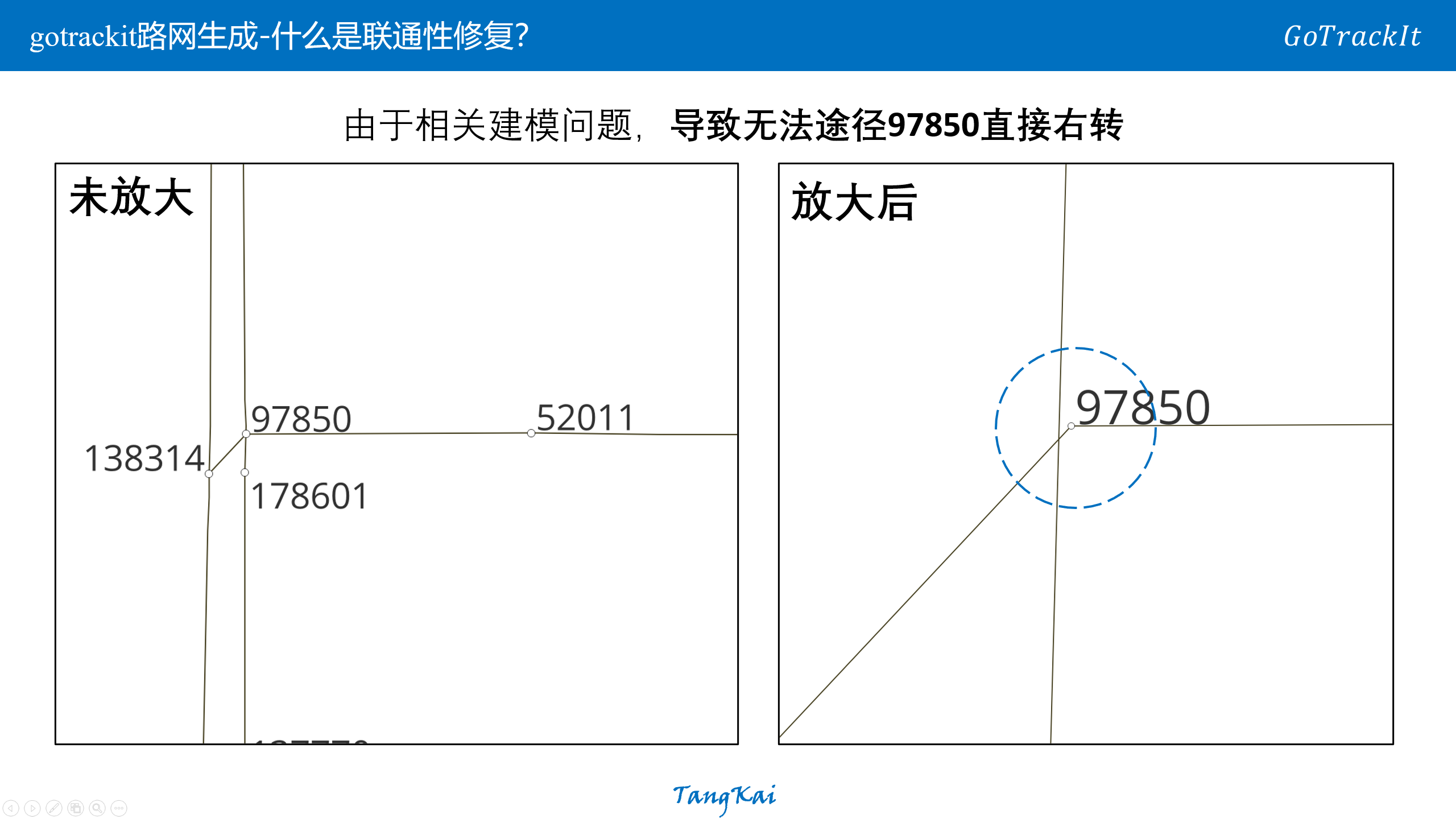

What is connectivity repair?

_images/conn_1.png
_images/conn_2.png

3.1.3. Road segment division

You already have a set of link and node files. You want to reshape the link layer, that is, to interrupt the road segments with a length greater than L(m), and the node layer data will automatically change accordingly.

This interface is a static method of the NetReverse class

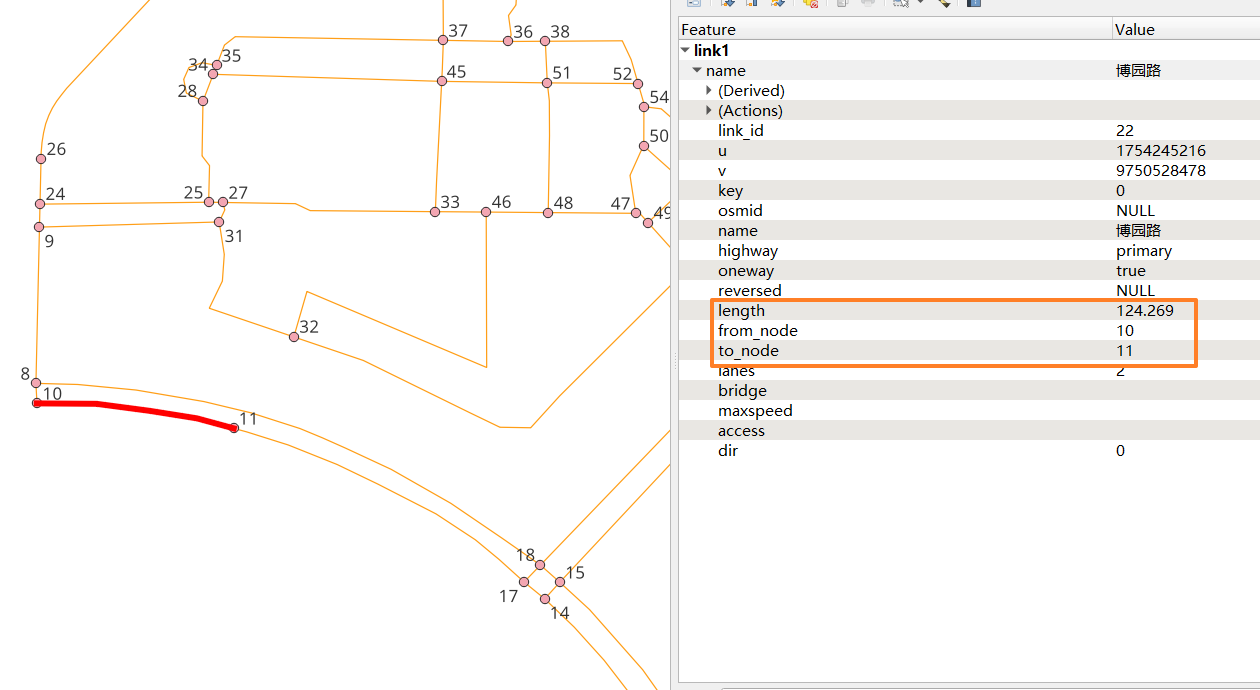

Before division:

_images/before_divide.png

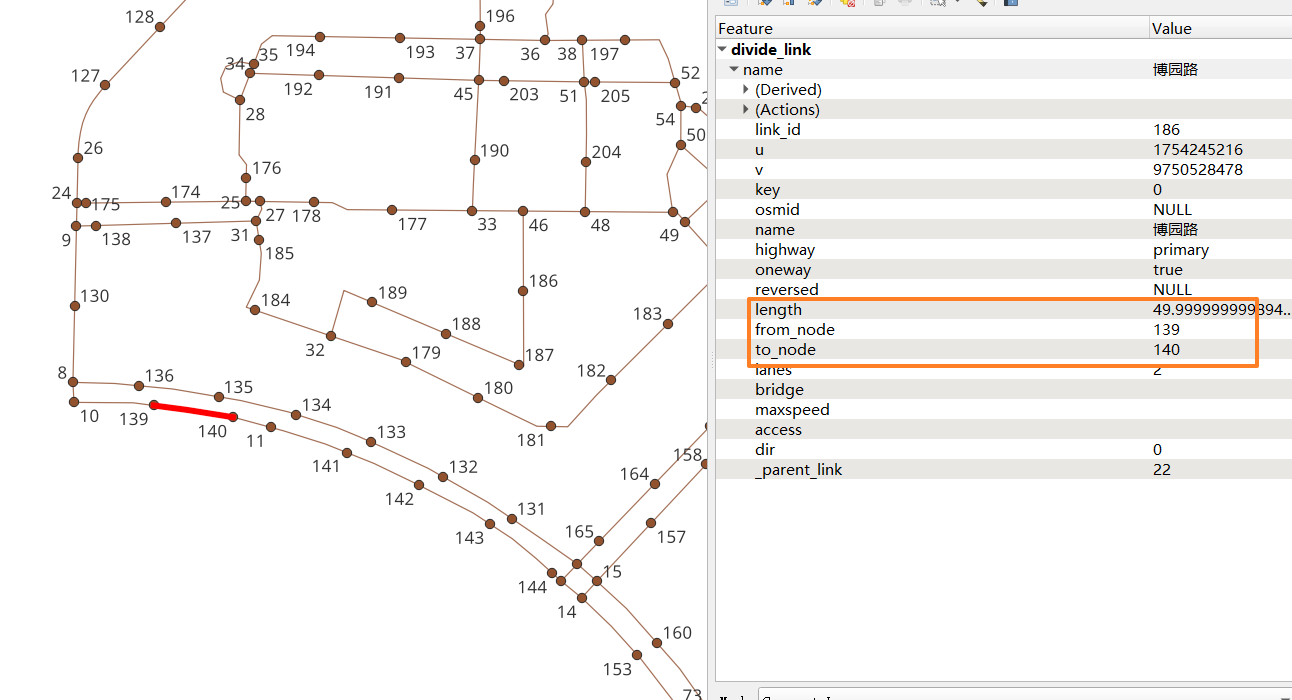

After division:

After division, a new field will be generated: _parent_link, which is used to record the link_id to which this road segment belonged before division. If it is null, it means that the road segment has not been divided.

_images/after_divide.png

Import related modules from gotrackit

import gotrackit.netreverse.NetGen as ng

 1if __name__ == '__main__':
 2    link = gpd.read_file(r'./data/input/net/test/0317/link1.geojson')
 3    node = gpd.read_file(r'./data/input/net/test/0317/node1.geojson')
 4
 5    nv = ng.NetReverse()
 6    # Execute the road network division
 7    # divide_l: All road segments with length greater than divide_l will be divided according to divide_l
 8    # min_l: If the remaining road length after division is less than min_l, then the division will not be allowed.
 9    new_link, new_node = nv.divide_links(link_gdf=link, node_gdf=node, divide_l=50, min_l=5.0)
10
11    new_link.to_file(r'./data/input/net/test/0317/divide_link.geojson', driver='GeoJSON', encoding='gbk')
12    new_node.to_file(r'./data/input/net/test/0317/divide_node.geojson', driver='GeoJSON', encoding='gbk')

3.1.4. id remapping

从gotrackit导入相关模块

import gotrackit.netreverse.NetGen as ng

If the link_id in your link table or the node_id in the node table is a very large integer, there is a risk in using such a network. You can use the following function to remap the ID

This interface is a static method of the NetReverse class

1if __name__ == '__main__':
2    l = gpd.read_file(r'./data/input/net/xian/modifiedConn_link.shp')
3    n = gpd.read_file(r'./data/input/net/xian/modifiedConn_node.shp')
4    print(l[['link_id', 'from_node', 'to_node']])
5    print(n[['node_id']])
6    nv = ng.NetReverse()
7    nv.remapping_link_node_id(l, n)
8    print(l[['link_id', 'from_node', 'to_node']])
9    print(n[['node_id']])

3.1.5. Reshaping of road network sections and nodes

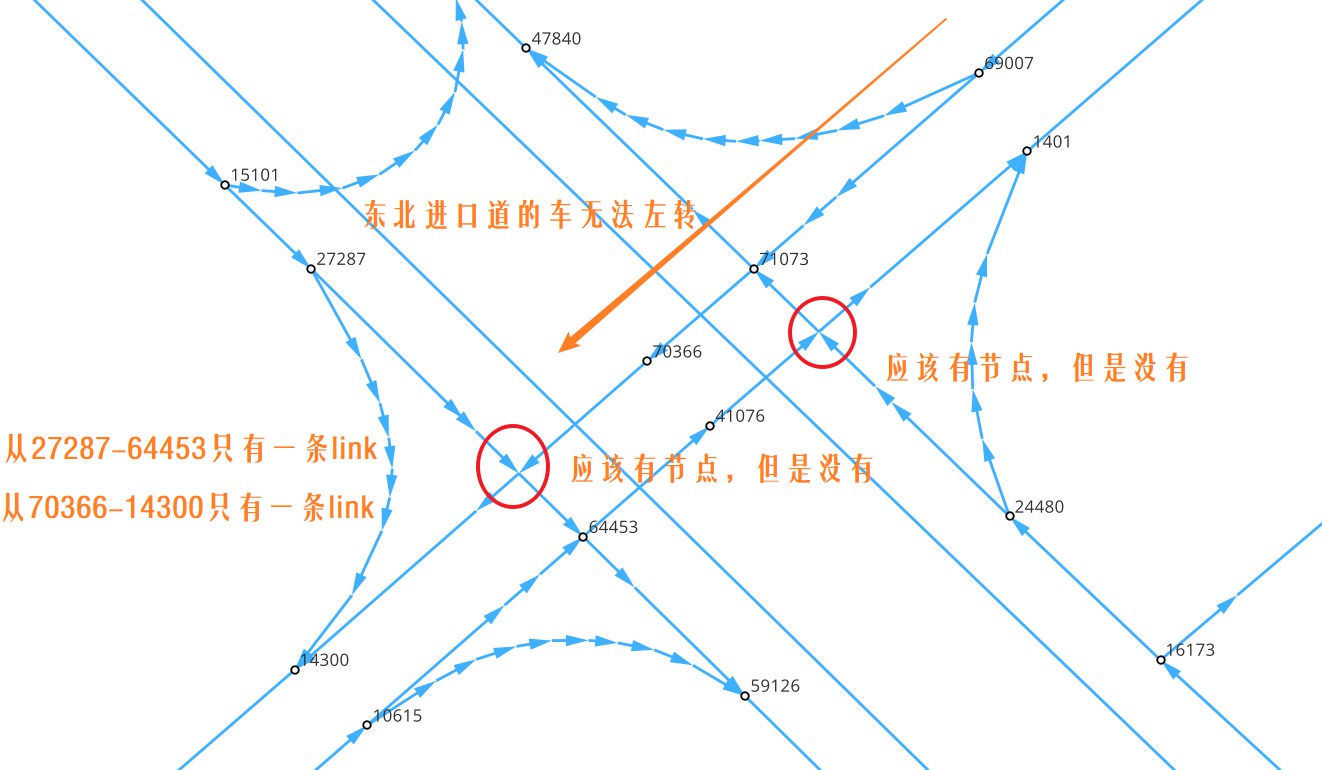

You already have a set of link files, but there are breakpoint connectivity issues, as shown below:

_images/before_redivide.jpg

You can use this interface to reshape the road segments and nodes and optimize connectivity. You only need to input a link layer, and this function will help you reshape the node division and road segment division, and repair the connectivity.

 1if __name__ == '__main__':
 2    # read data
 3    origin_link = gpd.read_file(r'./data/input/net/test/0402BUG/load/test_link.geojson')
 4    print(origin_link)
 5
 6    # cleaning
 7    origin_link = ng.NetReverse.clean_link_geo(gdf=origin_link, l_threshold=1.0, plain_crs='EPSG:32650')
 8
 9    # multi_core_merge=True means enabling multi-process for topology optimization
10    # merge_core_num means enabling two cores
11    nv = ng.NetReverse(net_out_fldr=r'./data/input/net/test/0402BUG/redivide',
12                       plain_crs='EPSG:32650', flag_name='new_divide', multi_core_merge=True,
13                       merge_core_num=2)
14
15    # new network files are generated under net_out_fldr
16    nv.redivide_link_node(link_gdf=origin_link)

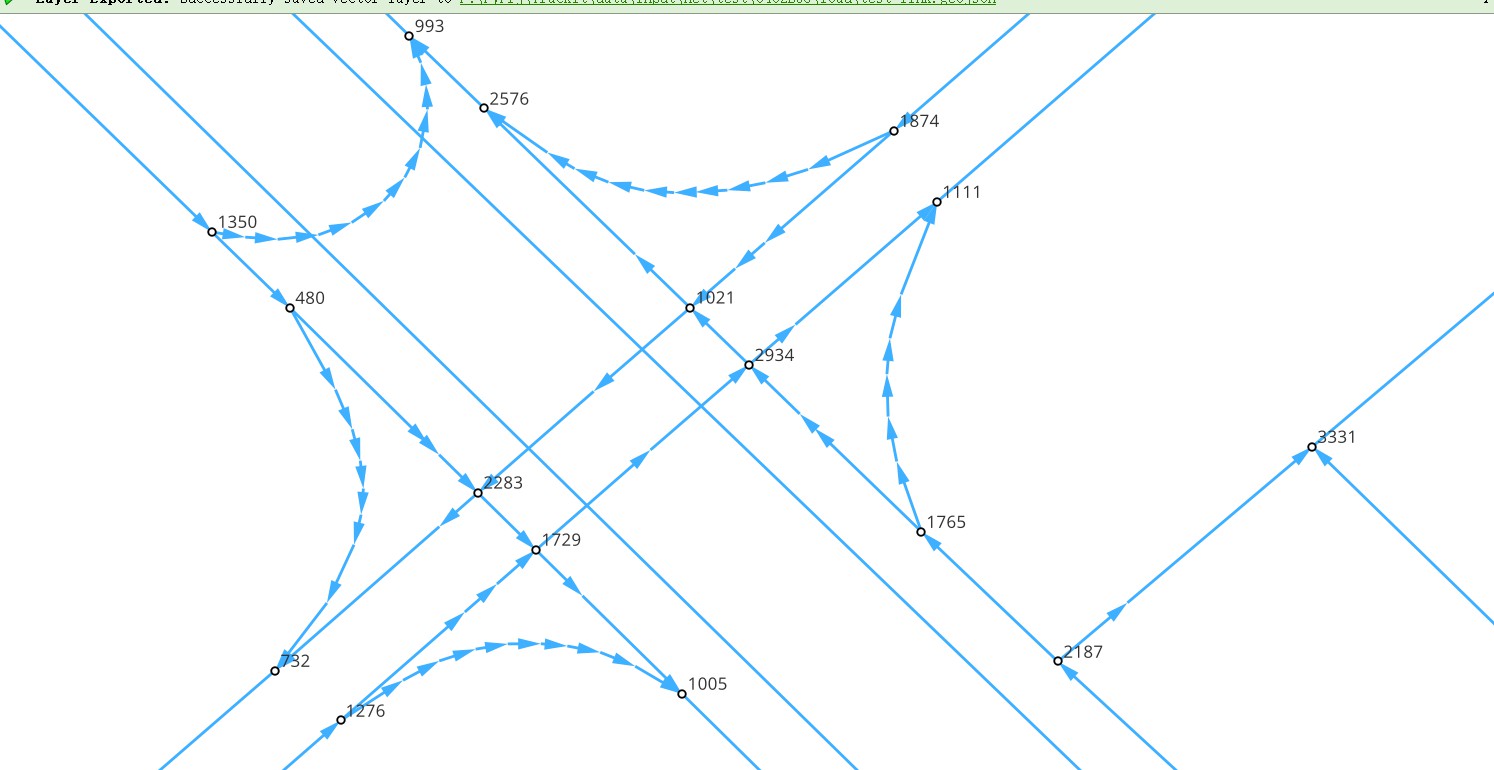

After remodeling and repair:

_images/after_redivide.jpg

3.1.6. Handling loops

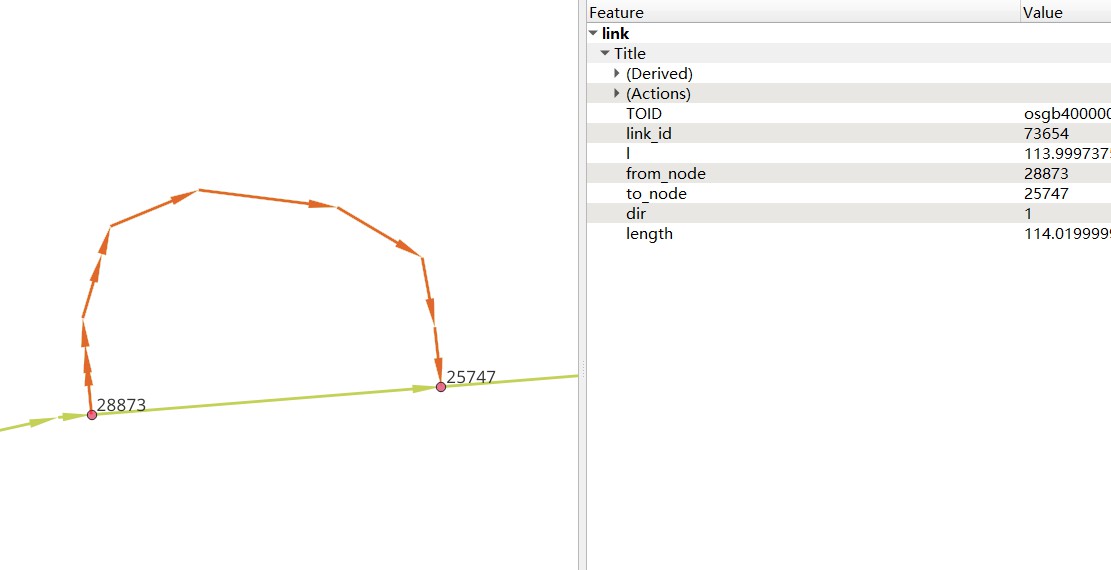

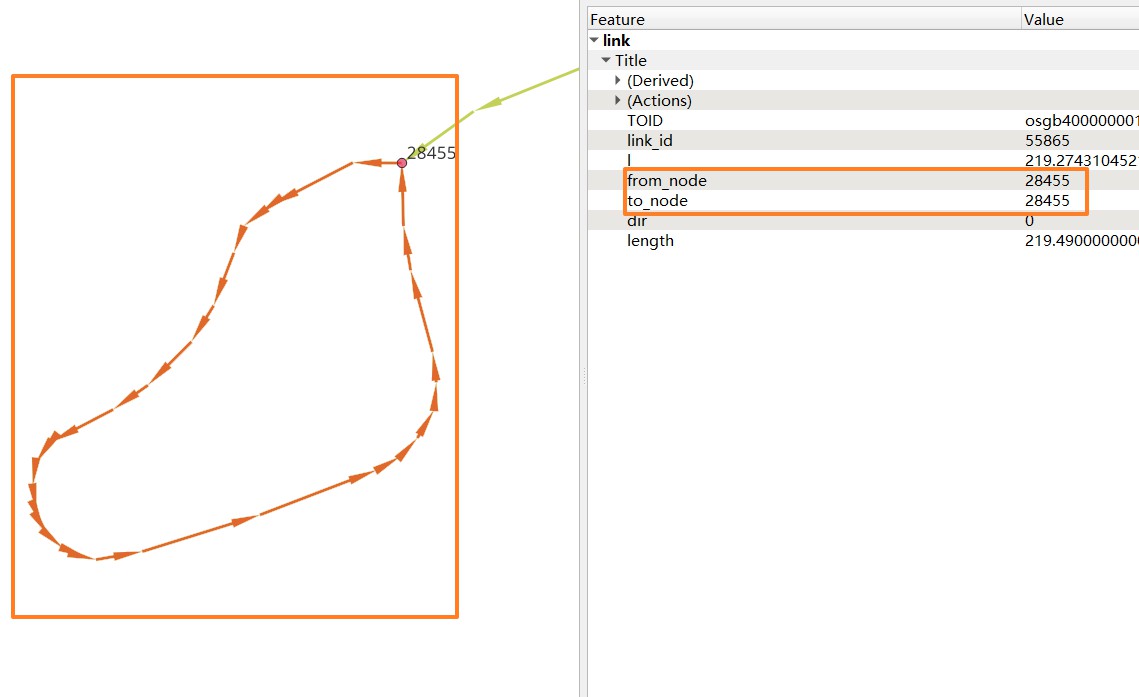

gotrackit does not allow loops or links with the same (from_node, to_node) in the network (as shown below). These links will be automatically identified and deleted when building the Net. If you want to keep these links, please use circle_process to process the network.

This interface is a static method of the NetReverse class

_images/circle_before.jpg
_images/same_ft_before.jpg
 1import gotrackit.netreverse.NetGen as ng
 2
 3if __name__ == '__main__':
 4    l = gpd.read_file('./data/input/net/test/0506yg/link.shp')
 5    n = gpd.read_file('./data/input/net/test/0506yg/node.shp')
 6
 7    # handling loops
 8    new_link, new_node = ng.NetReverse.circle_process(link_gdf=l, node_gdf=n)
 9
10    new_link.to_file('./data/input/net/test/0506yg/new_link.shp')
11    new_node.to_file('./data/input/net/test/0506yg/new_node.shp')

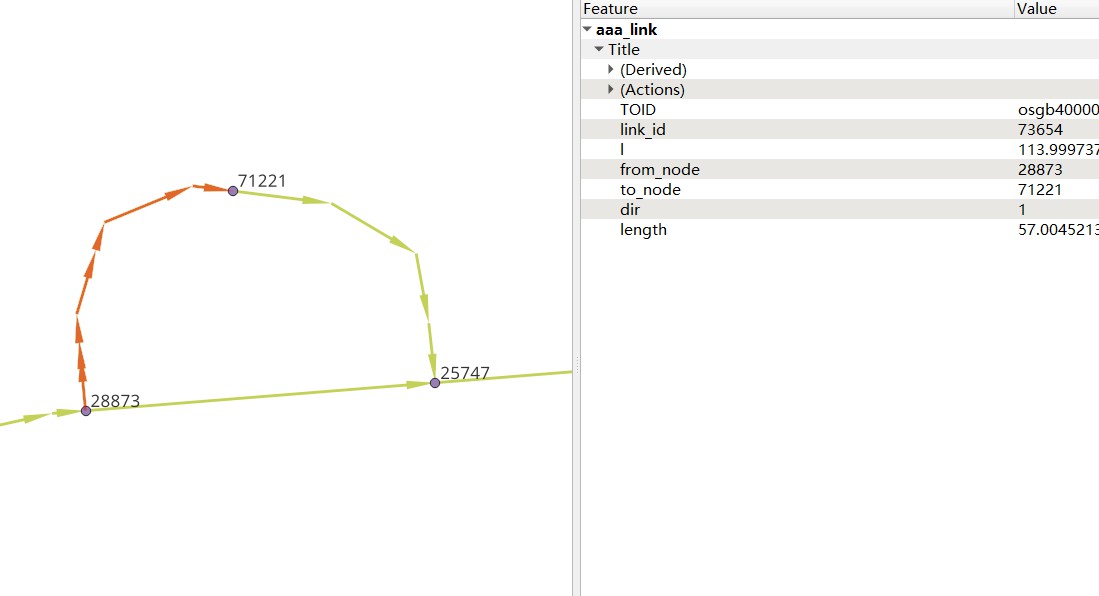

After circle_process processing, it is shown as follows

_images/circle_after.jpg
_images/same_ft_after.jpg

4. GPS data production

This module provides an interface. You only need to specify a road network. The module can simulate driving and generate trajectory data and GPS data. The sample code and parameter explanations are as follows:

For road network data requirements, see: Road network data requirements

 1# Import related modules from gotrackit: Net and TripGeneration
 2from gotrackit.map.Net import Net
 3from gotrackit.generation.SampleTrip import TripGeneration
 4
 5
 6if __name__ == '__main__':
 7    # 1.Build a net, requiring the road network link layer and node layer to be in WGS-84, EPSG:4326 geographic coordinate system
 8    my_net = Net(link_path=r'data/input/net/xian/modifiedConn_link.shp',
 9                 node_path=r'data/input/net/xian/modifiedConn_node.shp')
10
11    # Initialization
12    my_net.init_net()
13
14    # Create a new itinerary generation class
15    ts = TripGeneration(net=my_net, loc_error_sigma=50.0, loc_frequency=30, time_step=0.1)
16
17    # Randomly generate itineraries and output GPS data
18    ts.generate_rand_trips(trip_num=5, out_fldr=r'./data/output/sample_gps',
19                           agent_flag='0527-agent', instant_output=True)

Net construction parameters see: Related parameters for building Net

4.1. TripGeneration initialization parameters

  • net

    Road network object, must be specified

  • time_step

    Simulation step (s), default 0.1s

  • speed_miu

    Simulation speed mean (m/s), default 12.0

  • speed_sigma

    Simulation speed standard deviation (m/s), default 3.6

  • save_gap

    Save real trajectory data every simulation steps, integer, default 1

  • loc_frequency

    GPS positioning every s, default 2.0, this value must be greater than the simulation step

  • loc_error_sigma

    Positioning error standard deviation (m), default 40.0

  • loc_error_miu

    Positioning error mean (m), default 0.0

5. Trajectory data preprocessing

5.1. Trip segmentation

The original GPS data contains multiple trips of a vehicle. We need to divide the vehicle’s trips. GpsPreProcess provides two major functions: trip segmentation and OD extraction with waypoint information. You only need to pass in the GPS table data.

Make sure the GPS data meets the GPS positioning data field requirements .

This interface function provides the function of dividing the main trip and sub-trip. The sample code is as follows:

 1import pandas as pd
 2from gotrackit.gps.GpsTrip import GpsPreProcess
 3
 4if __name__ == '__main__':
 5    # read gps or trajectory data
 6    gps_gdf = pd.read_csv(r'data/output/gps/example/origin_gps.cssv')
 7
 8    # a new GpsPreProcess class
 9    grp = GpsPreProcess(gps_df=gps_gdf, use_multi_core=False)
10
11    # Call the trip_segmentations method to segment the trip
12    gps_trip = grp.trip_segmentations(group_gap_threshold=1800, plain_crs='EPSG:32650', min_distance_threshold=10.0)
13
14    gps_trip.to_csv(r'./data/output/gps/example/gps_trip.csv', encoding='utf_8_sig', index=False)

5.1.1. How to understand the main process and sub-process?

_images/%E8%A1%8C%E7%A8%8B%E5%88%87%E5%88%86.png

Example of sub-trip: A car goes from home to the company. Before arriving at the company, it refuels at a gas station. GPS points continue to be generated, but the positioning points are concentrated near the gas station, resulting in a stop. Then from home to the gas station is a sub-trip

Each main trip and sub-trip has a globally unique agent_id

If you only want to divide the main trip, specify min_distance_threshold as a negative number

5.2. Track data cleaning

To use gotrackit’s track data cleaning module, make sure the input GPS data meets GPS positioning data field requirements.

Using the TrajectoryPoints class provided by gotrackit, various preprocessing methods can be performed on trajectory data: interval sampling, stop point identification, sliding window averaging, trajectory point simplification, Kalman filter smoothing, these methods are encapsulated in the TrajectoryPoints class

The relevant parameters for initializing TrajectoryPoints are:

  • gps_points_df

    gps data

  • time_format

    The format string template of the time column in GPS data, the default is “%Y-%m-%d %H:%M:%S”, you can refer to the format parameter of the pd.to_datetime() function in pandas

    Reference: pd.to_datetime explanation, ISO_8601

  • time_unit

    The unit of the time column in GPS data, If the time column is a numeric value (seconds or milliseconds, s or ms), the system will automatically build the time column according to this parameter, the default is ‘s’. Gotrackit will first try to use time_format to build the time column. If it fails, it will try to use time_unit to build the time column again.

  • plain_crs:

    The plane projection coordinate system to be used, the default is None. If the user does not specify it, the program will automatically select the 6-degree projection zone based on the latitude and longitude range of the road network. It is recommended to use the program automatically

To specify manually: See: 6-degree zone division rule

TrajectoryPoints provides the following trajectory point cleaning methods:

5.2.1. Stop point deletion

_images/%E5%88%A0%E9%99%A4%E5%81%9C%E7%95%99%E7%82%B9.png

  • del_dwell_points():

    dwell_l_length: Dwell point identification distance threshold, default value 5.0m

    dwell_n: If the distance between more than dwell_n consecutive adjacent GPS points is less than dwell_l_length, then this group of points will be identified as a dwell point, default value 2

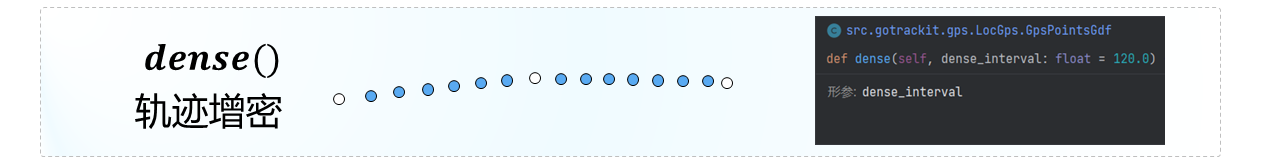

5.2.2. Track point densification

_images/%E8%BD%A8%E8%BF%B9%E5%A2%9E%E5%AF%86.png
  • dense():

    dense_interval: When the spherical distance L between adjacent GPS points exceeds dense_interval, the density is increased, and int(L / dense_interval) + 1 equal parts are encrypted. The default value is 100.0

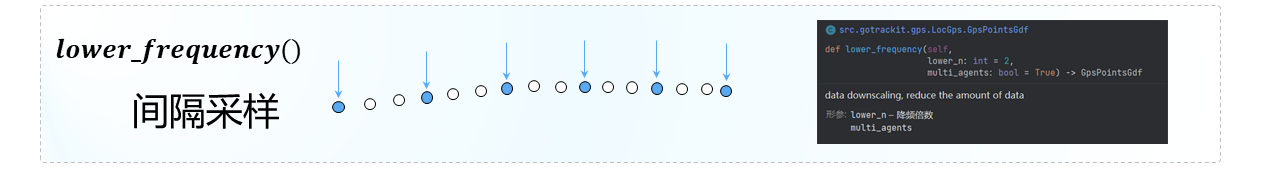

5.2.3. Track point frequency reduction

_images/%E9%97%B4%E9%9A%94%E9%87%87%E6%A0%B7.png
  • lower_frequency():

    lower_n: frequency reduction ratio, default 2

5.2.4. Sliding window smoothing

_images/%E6%BB%91%E5%8A%A8%E7%AA%97%E5%8F%A3%E5%B9%B3%E5%9D%87.png
  • rolling_average():

    rolling_window: sliding window size, Default is 2

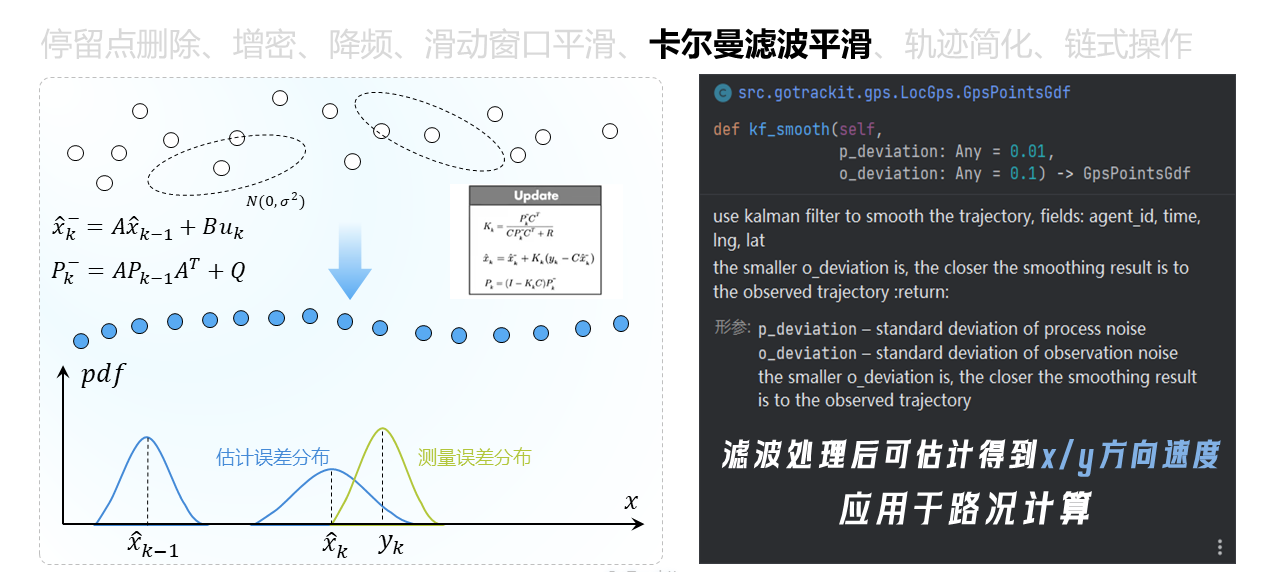

5.2.5. Offline Kalman filter smoothing

_images/%E7%A6%BB%E7%BA%BF%E5%8D%A1%E5%B0%94%E6%9B%BC.png

  • kf_smooth():

    p_deviation: Noise standard deviation of the transfer process, default is 0.01

    o_deviation: Noise standard deviation of the observation process, default is 0.1, the smaller the o_deviation, the closer the result after filtering and smoothing is to the observed trajectory (i.e. the source trajectory)

5.2.6. Trajectory simplification

_images/%E8%BD%A8%E8%BF%B9%E7%AE%80%E5%8C%96.png

  • simplify_trajectory():

    l_threshold: Simplification threshold, default 5.0m

5.2.7. Trajectory cleaning and visualization

_images/%E9%93%BE%E5%BC%8F%E6%93%8D%E4%BD%9C.png

The sample code is as follows:

 1import pandas as pd
 2from gotrackit.gps.Trajectory import TrajectoryPoints
 3
 4gps_df = pd.read_csv(r'gps.csv')
 5
 6# craeate TrajectoryPoints class and assign plain_crs
 7tp = TrajectoryPoints(gps_points_df=gps_df, time_unit='ms', plain_crs='EPSG:32649')
 8
 9# Sample one point every 3 points
10# tp.lower_frequency(lower_n=3)
11
12
13# Kalman filter smoothing
14tp.kf_smooth()
15
16# Use chain operations to customize the order of preprocessing.
17# As long as kf_smooth() is the last step, the processed trajectory data can be used to obtain the xy speed data.
18# tp.rolling_average().kf_smooth()
19# tp.rolling_average().lower_frequency().kf_smooth()
20
21
22# Get the cleaned results
23# _type: df or gdf
24process_df = tp.trajectory_data(_type='df')
25
26out_fldr = r'./data/output/'
27
28# Save
29process_df.to_csv(os.path.join(out_fldr, r'after_reprocess_gps.csv'), encoding='utf_8_sig', index=False)
30
31# Export html to visualization
32tp.export_html(out_fldr=out_fldr, file_name='sample')

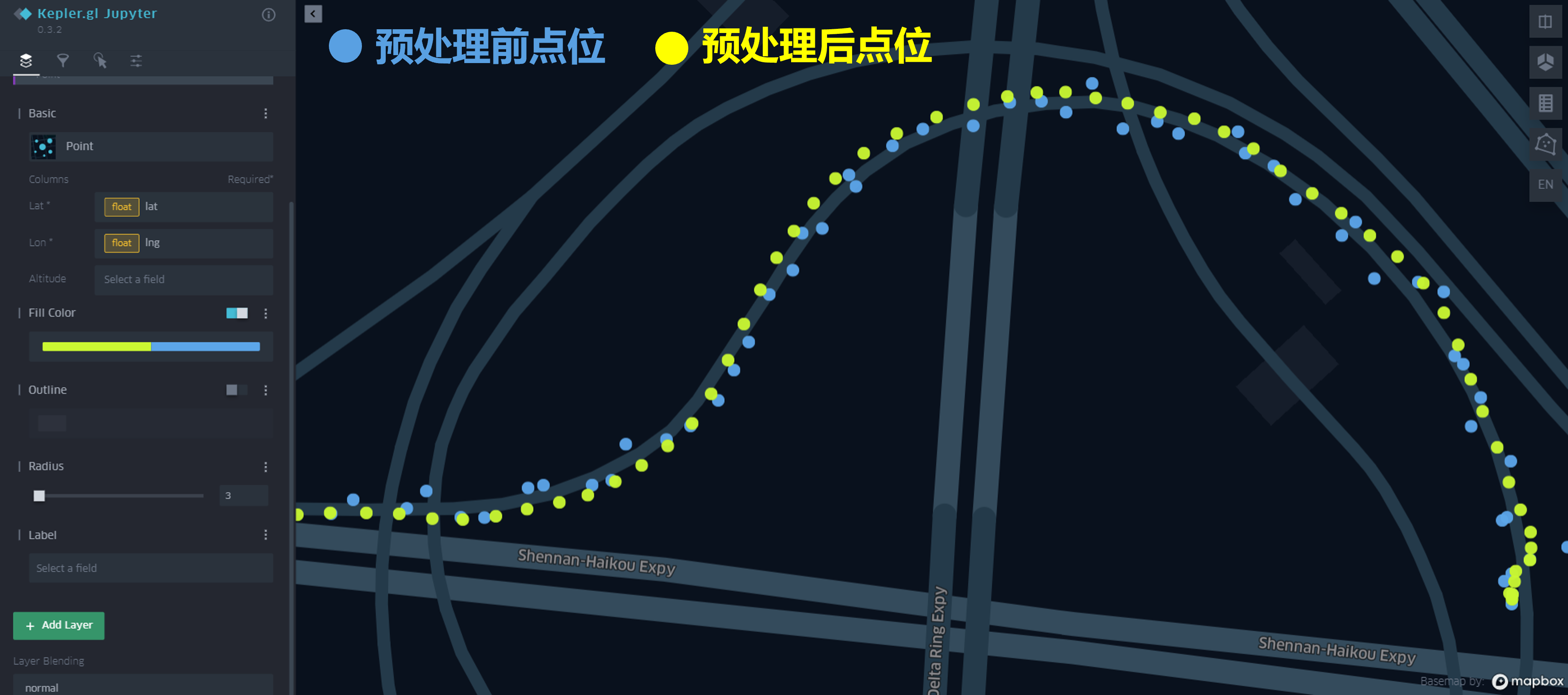

The output HTML file can dynamically visualize the comparison of track points before and after cleaning：

_images/visualization.png

6. Offline map matching

Note

In gotrackit version v0.3.8, the gps_df parameter of the map matching interface was changed from being initialized by the MapMatch class and passed in gps_df to being passed in the execute parameter

6.1. Required data

To use the map matching interface, you need to prepare road network data and GPS data.

Road network data requirements: Road network data requirements, GPS data requirements: GPS positioning data field requirements

The matching process architecture diagram is as follows:

_images/MatchGraph.png

The map matching parameters are composed of two parts: parameters for building Net and MapMatch function parameters

6.2. Matching interface parameter explanation - parameters for building Net

6.2.1. Road network parameters

  • link_gdf

    Road network - link layer data, type: GeoDataFrame, only one of link_path can be specified, it is recommended to use the method of passing in link_gdf

  • node_gdf

    Road network - node layer data, type: GeoDataFrame, only one of node_path can be specified. It is recommended to pass in node_gdf

  • link_path

    File path of road network link layer data

  • node_path

    File path of road network node layer data

6.2.2. Truncation search parameters

  • cut_off

    Path search cutoff length, meters, default 1200.0m

  • not_conn_cost

    Cost of disconnected paths, default 1000.0m

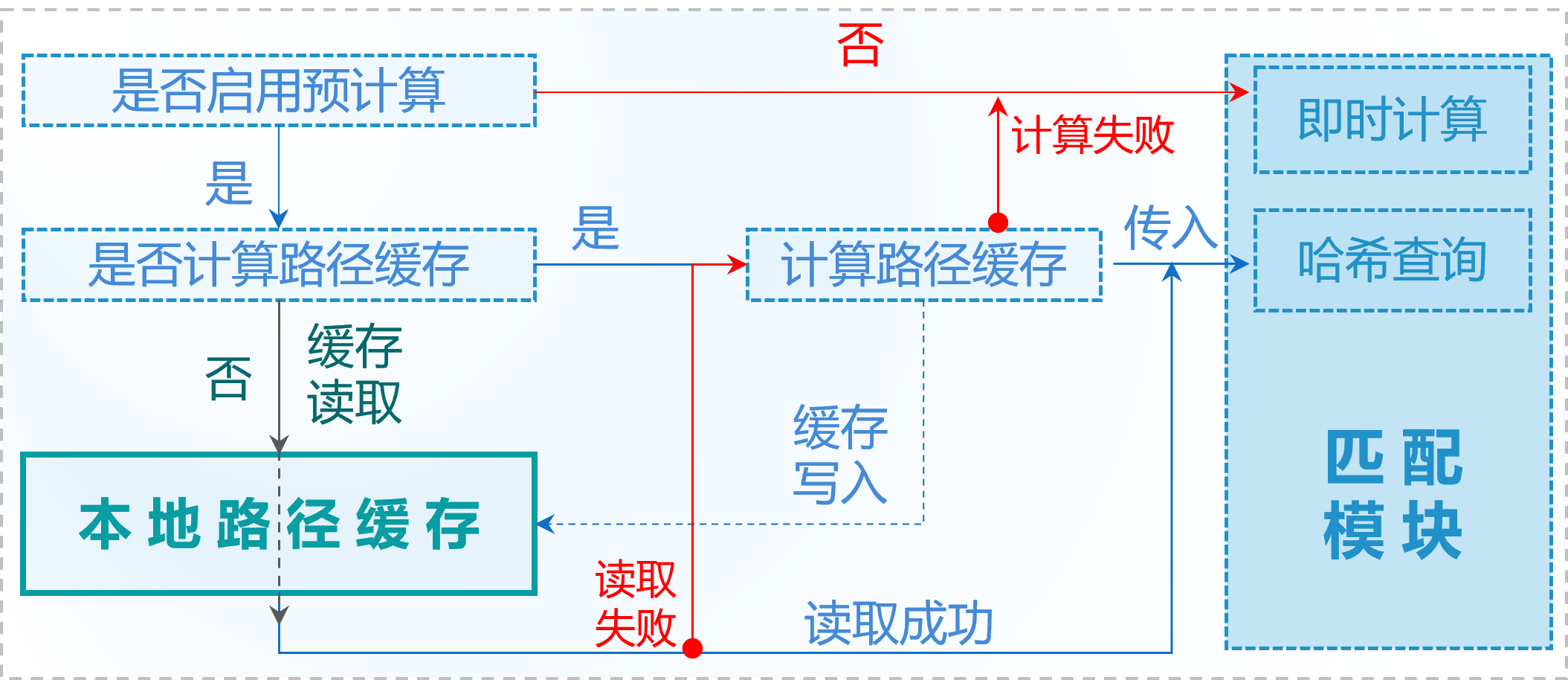

6.2.3. Path pre-calculation parameters

  • fmm_cache

    Whether to enable pre-calculation. If enabled, the pre-calculation results will be cached under fmm_cache_fldr. Default False

  • fmm_cache_fldr

    The directory for storing precalculated results, default is ./

  • recalc_cache

    Whether to recalculate, default is True. When the value is False, gotrackit will read the cache from fmm_cache_fldr. If it cannot be read, it will automatically recalculate

  • cache_cn

    An integer greater than 0, indicating how many cores are used for path precalculation, the default is 2

  • cache_slice

    An integer greater than 0, indicating that the path result is divided into cache_slice parts for data standardization (increasing this value in large-scale road networks can prevent memory overflow)

6.2.4. Hierarchical spatial index parameters

  • is_hierarchical

    Whether to enable hierarchical association. In the case of super-large road networks and long GPS tracks, it is turned on as True, which can significantly improve the spatial association efficiency of the self-subnetwork. The default is False

  • grid_len

    The grid side length in hierarchical association (m), the default is 2000m, and the default is generally sufficient

6.2.5. Plane projection system parameters

  • plain_crs

    The plane projection coordinate system to be used, the default is None. If the user does not specify, the program will automatically select the 6-degree projection zone based on the latitude and longitude range of the road network. It is recommended to use the program automatically

    If you want to specify manually: See: `6-degree zone division rules`_

As of v0.3.5, users can only specify the above 14 parameters by themselves. Other parameters are built-in parameters (some parameters have not been enabled yet), and users cannot specify them by themselves!

6.3. Matching interface parameter explanation - MapMatch parameter explanation

6.3.1. Project tag parameter * flag_name

Flag character name, will be used to mark the output visualization file, default is “test”

6.3.2. Basic parameters (must be specified)

  • net

    gotrackit network object, must be specified

  • use_sub_net

    bool, whether to perform calculations on the subnet, default True

6.3.3. Time column construction parameters

  • time_format

    The format string template for the time column in GPS data, default “%Y-%m-%d %H:%M:%S”, refer to the format parameter of the pd.to_datetime() function in pandas

    Reference: pd.to_datetime explanation, ISO_8601

  • time_unit

    The unit of the time column in GPS data, If the time column is a numeric value (seconds or milliseconds, s or ms), the system will automatically construct the time column according to the parameter, the default is ‘s’. Gotrackit will first try to use time_format to build the time column. If it fails, it will try to use time_unit to build the time column again.

6.3.4. Candidate range parameters

  • gps_buffer

    GPS search radius, in meters, means only the road segments within the gps_buffer meter range near each gps point are selected as preliminary candidate road segments, default 200.0m

  • gps_route_buffer_gap

    Radius increment, the radius range of gps_buffer + gps_route_buffer_gap is used to calculate the subnetwork, default 15.0m

  • top_k

    Select the nearest top_k road segments within the buffer range of each GPS point, default 20. Each GPS point establishes a circular buffer based on the specified gps_buffer. The road segments associated with the buffer are the preliminary candidate road segments of the GPS point. Then, the top_k road segments closest to the GPS point are selected as the final candidate road segments based on the top_k parameter.

    Note: For a road segment with dir of 0, it will actually be split into two road segments with opposite topologies. If 20 bidirectional road segments are associated with the buffer range of a certain GPS, top_k must be at least 40 to select these 20 bidirectional road segments as the final candidates.

6.3.5. Emission probability and state transition probability parameters

  • beta

    Value greater than 0, default 6.0m; the larger the value, the less sensitive the state transition probability is to the distance difference (meters, the difference between the path length of adjacent projection points and the spherical distance of adjacent GPS points)

  • gps_sigma

    Value greater than 0, default 30.0m; the larger the value, the less sensitive the emission probability is to the distance (meters, the distance from the GPS point to the candidate section)

  • dis_para

    Scaling factor of distance (m), value greater than 0, default 0.1

6.3.6. GPS preprocessing parameters - Dwell point processing

  • del_dwell

    Whether to identify and delete dwell points, default True

  • dwell_l_length

    Dwell point identification distance threshold, default 10m

  • dwell_n

    If the distance between more than dwell_n consecutive adjacent GPS points is less than dwell_l_length, then this group of points will be identified as dwell points, default 2

6.3.7. GPS preprocessing parameters - point frequency reduction

  • is_lower_f

    Whether to perform data frequency reduction on GPS data, applicable to: high frequency-high positioning error GPS data, default False

  • lower_n

    Downsampling ratio, default 2

6.3.8. GPS preprocessing parameters - sliding window average

  • is_rolling_average

    Whether to enable sliding window average to reduce noise for GPS data, default False

  • window

    Sliding window size, default 2

6.3.9. GPS preprocessing parameters - point density

  • dense_gps

    Whether to densify GPS data, default True

  • dense_interval

    When the spherical distance L of adjacent GPS points exceeds dense_interval, it will be densified, int(L / dense_interval) + 1 Equal encryption, default 100.0

_images/gps_process.jpg

6.3.10. Emission Probability Correction - Heading Angle Correction

  • use_heading_inf

    Whether to use GPS differential direction vector to correct the emission probability (roughly estimate the heading angle using the GPS before and after points), applicable to: low positioning error GPS data or low frequency positioning data (with encryption parameters), default False

  • heading_para_array

    Differential direction correction parameters, default np.array([1.0, 1.0, 1.0, 0.9, 0.8, 0.7, 0.6, 0.6, 0.5])

  • omitted_l

    The unit is meter. If the average distance between the previous and next GPS points is less than this value, the heading angle of the GPS point is considered inaccurate and the heading angle limit will not be applied at this point. The default value is 6.0m.

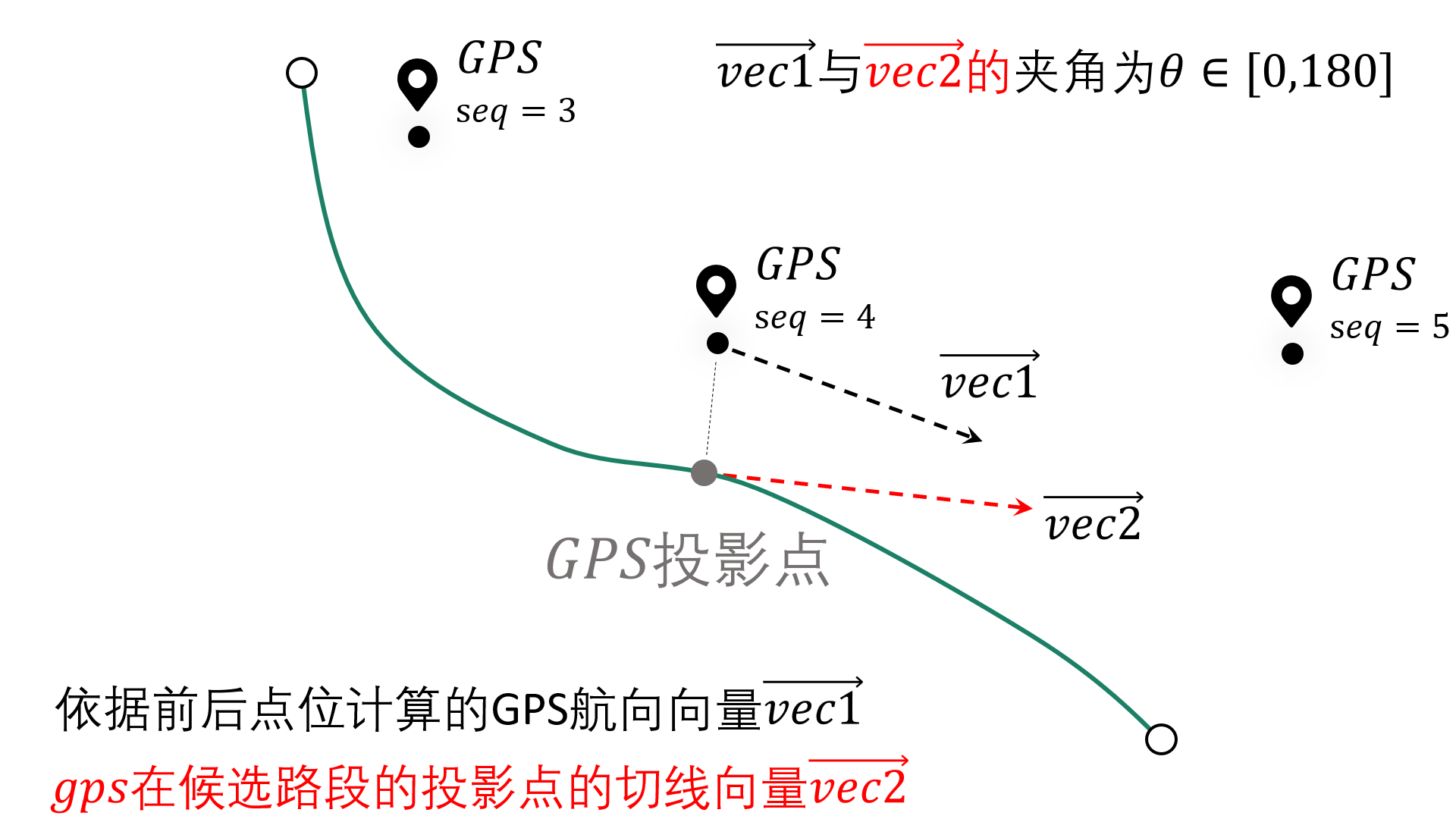

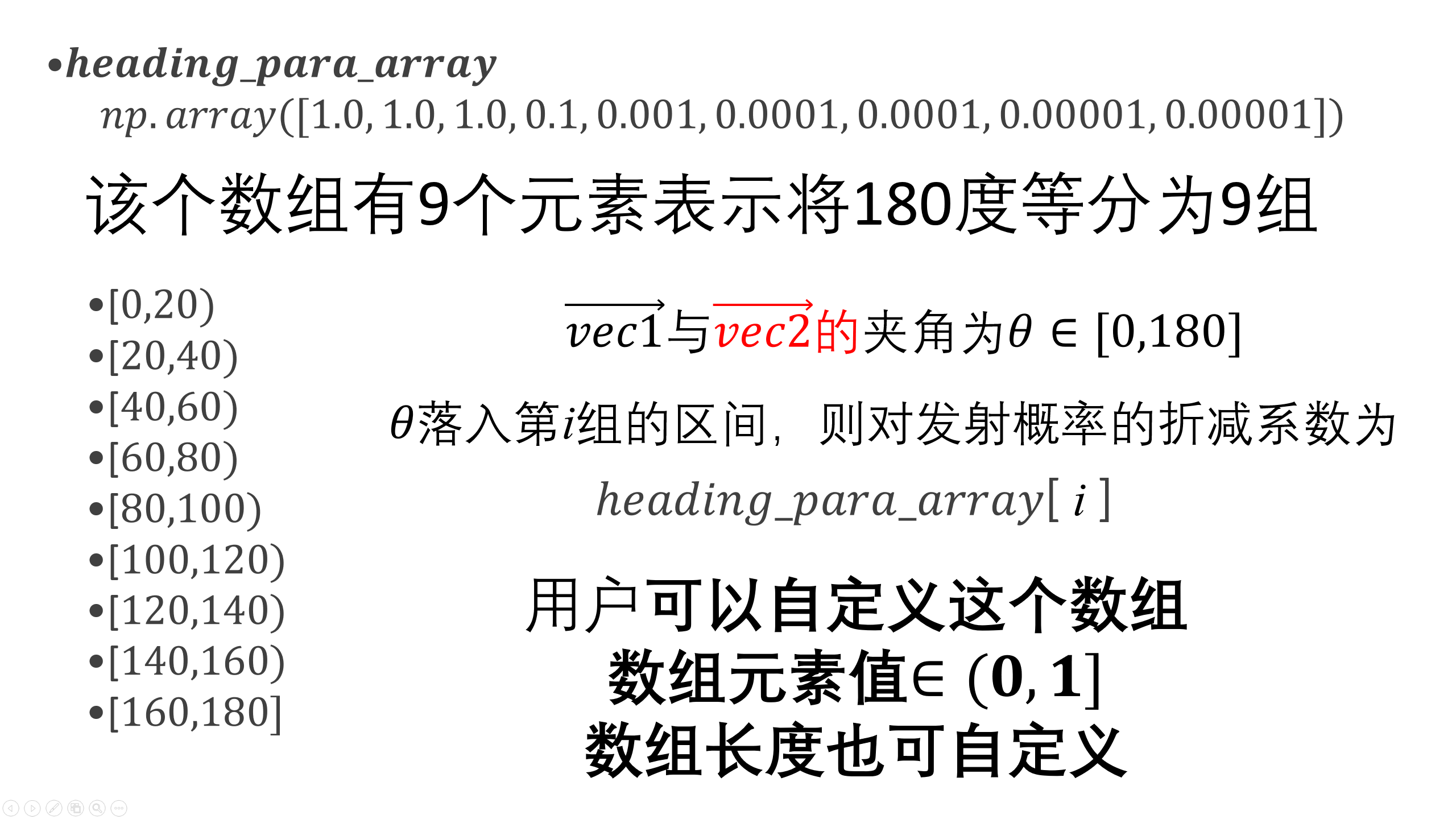

Explanation of the direction correction coefficient:

_images/heading_para_1.png
_images/heading_para_2.png

6.3.11. Result output setting parameters

  • instant_output

    Whether to store csv matching results after each matching track, default is False. If there are many agents to be matched, specifying this parameter as True may cause the matching results to accumulate in the memory, which may cause memory overflow. If it is specified as False, the matching result table will be stored after each agent is matched to avoid accumulation in the memory

  • visualization_cache_times

    After matching visualization_cache_times agents, the results (html, geojson visualization results) are stored uniformly (concurrent storage is possible), default is 50

  • out_fldr

    The directory where the matching results are saved (html files, geojson files, csv files), default is the current directory

  • user_field_list

    The list of fields that can be output with the matching results in the GPS data table, for example: [‘gps_speed’, ‘origin_agent’], if the sliding window average is enabled, this parameter will automatically become invalid, default is None

These fields must actually exist in the gps table

6.3.12. Visualization output parameters

  • export_html

    Whether to output the web page visualization result html file, default True

  • use_gps_source

    Whether to use GPS source data for display in HTML visualization results, default False

  • export_all_agents

    Whether to store the visualization of all agents in an html file

  • gps_radius

    The radius of the GPS point in HTML visualization, in meters, default 8 meters

  • export_geo_res

    Whether to output the geojson geometry visualization file of the matching result, default False

  • heading_vec_len

    The length of the heading vector in the geojson geometry visualization file, default 15m

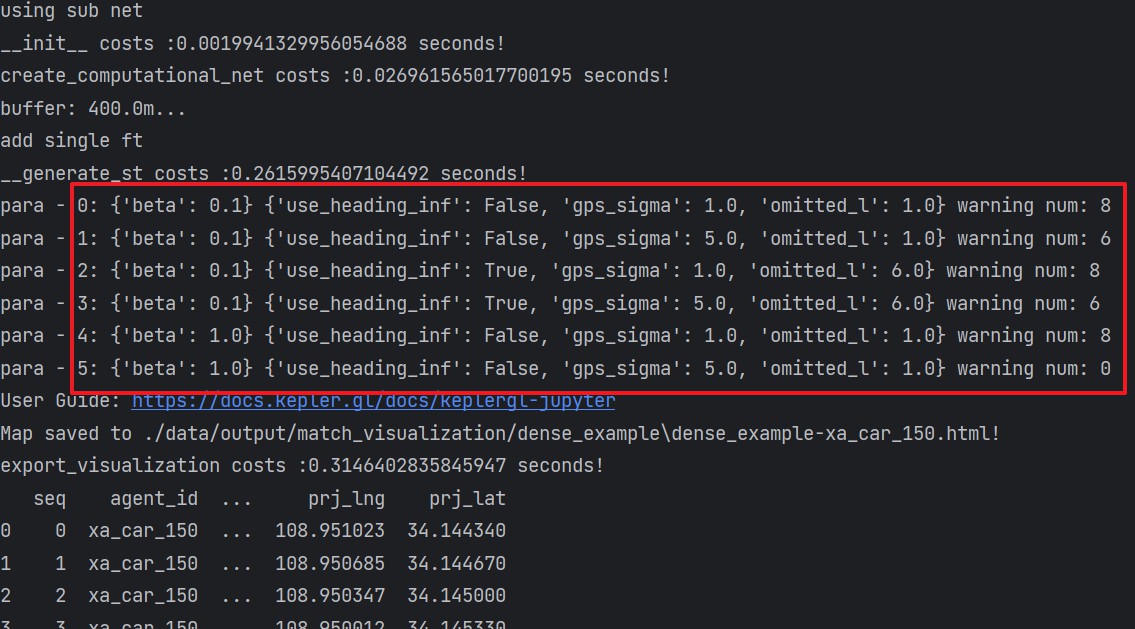

6.3.13. Grid parameter search settings

  • use_para_grid

    Whether to enable grid parameter search

  • para_grid

    Grid parameter object

6.3.14. execute - Execute matching parameters

  • gps_df

    GPS data to be matched, type: pd.DataFrame

6.4. Conventional matching code example

The data file used is obtained from the Git repository: QuickStart-Match-1

 1# 1. 从gotrackit导入相关模块Net, MapMatch
 2import pandas as pd
 3import geopandas as gpd
 4from gotrackit.map.Net import Net
 5from gotrackit.MapMatch import MapMatch
 6
 7
 8if __name__ == '__main__':
 9
10    # 1. Read GPS data
11    # This is a file with GPS data of 10 vehicles, which has been cleaned and segmented
12    # GPS data for map matching needs to be cleaned and segmented by the user
13    gps_df = pd.read_csv(r'./data/output/gps/sample/example_gps.csv')
14    print(gps_df)
15
16    # 2.To build a net, the road network link layer and road network node layer must be in WGS-84, EPSG:4326 geographic coordinate system
17    # Please pay attention to the encoding of the shp file. You can specify the encoding to ensure that there is no garbled code in the field.
18    link = gpd.read_file(r'./data/input/net/xian/modifiedConn_link.shp')
19    node = gpd.read_file(r'./data/input/net/xian/modifiedConn_node.shp')
20    my_net = Net(link_gdf=link,
21                 node_gdf=node)
22    my_net.init_net()  # initialization
23
24    # 3. map-match
25    mpm = MapMatch(net=my_net, gps_buffer=100, flag_name='xa_sample',
26           use_sub_net=True, use_heading_inf=True, omitted_l=6.0,
27           del_dwell=True, dwell_l_length=50.0, dwell_n=0,
28           export_html=True, export_geo_res=True, use_gps_source=True,
29           export_all_agents=False,
30           out_fldr=r'./data/output/match_visualization/xa_sample', dense_gps=False,
31           gps_radius=15.0)
32
33    # The first result returned is the matching result table
34    # The second is the relevant information of the warning
35    # The third is the ID number list of the agent with matching errors
36    match_res, may_error_info, error_info = mpm.execute(gps_df=gps_df)
37    print(match_res)
38    match_res.to_csv(r'./data/output/match_visualization/xa_sample/match_res.csv', encoding='utf_8_sig', index=False)

6.4.1. Match result table (match_res) field meaning

Map match result table field description

Field name

Field meaning

Field type

agent_id

agent_id to which the gps point belongs

string

seq

sequence ID of the gps point

int

sub_seq

subsequence ID of the gps point, if the subsequence>0, it means that the point is a point that is supplemented after matching, called a supplementary point, and its projection point on the target section will not be calculated

int

time

gps positioning time

datetime

loc_type

gps point type, three categories: s: source GPS point, d: densification point, c: supplementary point

string

link_id

link_id of the gps matching section, corresponding to the link_id field of the road network

int

from_node

starting node of the gps matching section (indicating the starting point of the driving direction)

int

to_node

end-to-end node of the gps matching section (indicating the end point of the driving direction)

int

lng

longitude of the gps point, EPSG:4326

float

lat

latitude of the gps point, EPSG:4326

float

prj_lng

longitude of the gps point corresponding to the matching point on the matching section, EPSG:4326, the value of the supplementary point is empty

float

prj_lat

latitude of the gps point corresponding to the matching point on the matching section, EPSG:4326, the value of the supplementary point is empty

float

match_heading

The heading angle of the GPS matching point (the angle swept clockwise from the north direction, 0~360 degrees), the value of the supplementary point is empty

float

dis_to_next

The path distance between the GPS projection point and the subsequent adjacent GPS projection point (excluding the supplementary point), the value of the supplementary point is empty

float

route_dis

The path distance between the GPS matching point on the matching section and the starting point of the section, the value of the supplementary point is empty

float

Other user-specified output fields

Refer to the parameter user_field_list

user diy

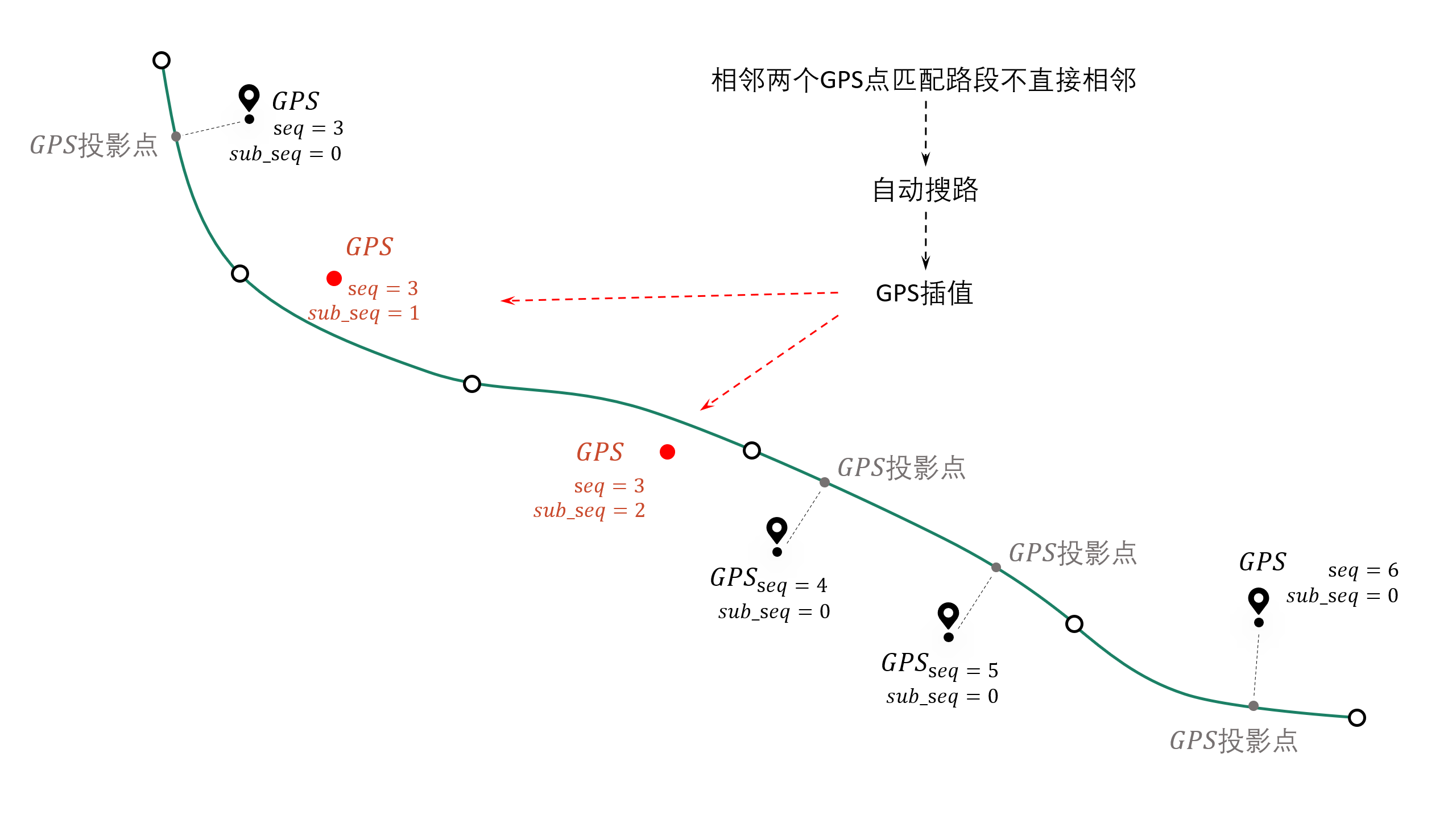

About sub_seq (sub_seq >= 1 is a supplementary point, which has no practical meaning and is only for the neatness of the output format):

_images/gps_segmentize.png

Note

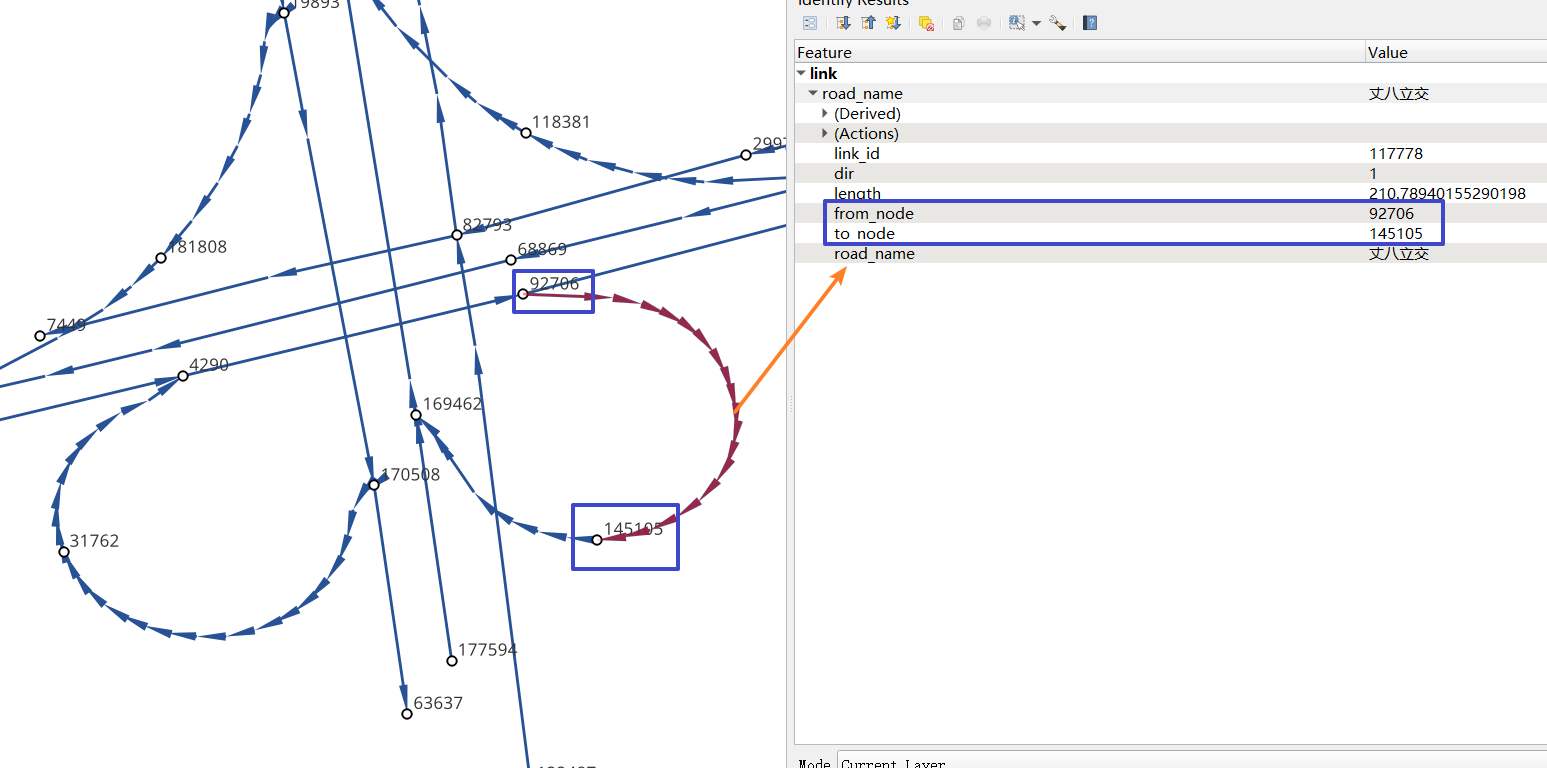

For a two-way road section with dir=0, for example: link_id=12, from_node=2, to_node=3, when link_id=12 is matched in the matching result, its (from_node, to_node) may be (2, 3) or (3, 2), which is determined by the actual driving direction of the GPS

6.4.2. Meaning of warning information and error information

The map matching interface will return three results, the first is the matching result table, the second is the relevant information of the warning, and the third is the list of agent_id numbers where the matching error occurred

  • Warning information

    The matching results of the agent that has a warning, together with the agent without any warning, will be output in match_res

    The data structure of the warning information may_error_info is a dictionary: the key represents the agent_id, and the value is a table that records the road section information where the current agent has a warning during the matching process (can be visualized in HTML)

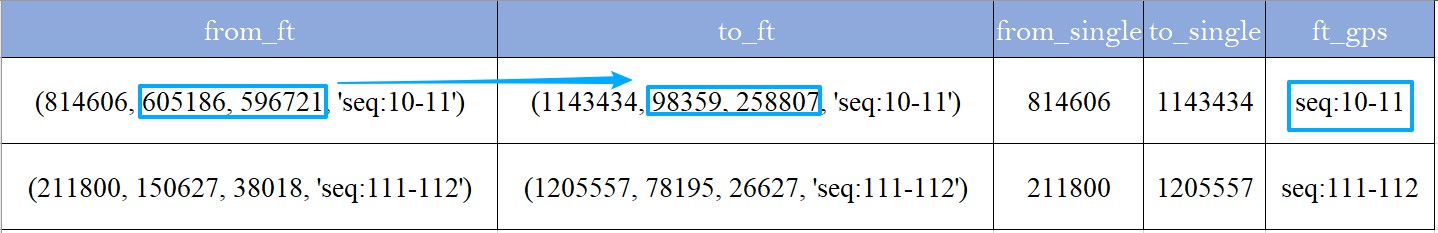

    For an example explanation of the value (a DataFrame), take the first line of the following figure as an example. A line represents a warning. We only care about the 2nd to 3rd elements of the from_ft column and to_ft column values ​​(the starting node of the road section), matching link(605186, 596721) to The matching links (98359, 258807) are not connected, indicating that there may be missing sections.

1UserWarning: gps seq: 10 -> 11 state transfer problem, from_link:(605186, 596721) -> to_link:(98359, 258807)
2UserWarning: gps seq: 111 -> 112 state transfer problem, from_link:(150627, 38018) -> to_link:(78195, 26627)
_images/warn_info.jpg
  • Error message

    The data structure of error_info is a list, which records the agent_id where the match error occurred. Generally, the GPS data cannot be associated with any road network, or there are less than two GPS data points, or there are overlapping breakpoints in the road network link layer. For these errors, gotrackit will output an error message and skip the match.

6.5. Accelerate matching - enable pre-calculation

Note

Enable pre-calculation. If the network is large, it will have higher requirements on the computer’s memory size. If the memory overflows during the calculation process, please try to increase cache_cn and cache_slice when initializing Net, or reduce cut_off

During the map matching process, the following two calculation processes have high overhead:

  • Calculation of projection parameters from GPS points to adjacent candidate sections

  • Calculation of the shortest path between candidate sections

However, in the process of matching vehicles of different agents, many parts of this part of the calculation are repeated calculation items. So can we pre-calculate all possible shortest paths and projection parameters based on a pre-calculation idea? We may only need to spend a little more time to pre-calculate before matching, and then store these pre-calculated results on disk. In the future, before each match, we only need to read the pre-calculated results once and load them into memory. We can get these shortest path results and projection parameter results with O(1) time complexity. gotrackit implements this process. The following code is the matching method using pre-calculation:

_images/fmm.png

Note

Whenever there is any change in the road network, please recalculate the path cache

Note

To calculate the path cache, please make sure that your road segment line type has no duplicate points. You can use `clean the road network link layer data`_

 1if __name__ == '__main__':
 2    # Specify the fmm_cache parameter as True when building the net, which means pre-calculation is performed when building the net object this time
 3    # Please pay attention to the encoding of the shp file, you can specify the encoding explicitly to ensure that the fields are not garbled
 4    link = gpd.read_file(r'./data/input/net/xian/modifiedConn_link.shp')
 5    node = gpd.read_file(r'./data/input/net/xian/modifiedConn_node.shp')
 6    my_net = Net(link_gdf=link,
 7                 node_gdf=node,
 8                 fmm_cache=True, fmm_cache_fldr=r'./data/input/net/xian/', recalc_cache=True,
 9                 cut_off=800.0,
10                 cache_slice=6)
11    my_net.init_net()  # net initialization
12
13    # fmm_cache_fldr is used to specify the file directory for storing pre-calculated results
14    # cut_off is 800m, which means that during the shortest path search, only the paths with the shortest path distance less than 800.0m are calculated (considering that the distance span between adjacent GPS points will not be too large)
15    # cache_slice=6, which means that the path results are divided into 6 parts for data standardization (to prevent memory overflow in large-scale road networks)

After the execution of the above network construction code, two pre-calculation result files will be generated under r’./data/input/net/xian/’.

The author uses Shenzhen’s road network (90,000 links, 80,000 nodes), and the pre-calculation time is about two minutes. If there is no change in the road network used, the path of the pre-calculation result can be directly specified when using the road network for matching next time. At this time, directly specify recalc_cache=False, which means to read the pre-calculation result directly from fmm_cache_fldr, and no longer repeat the pre-calculation process.

 1if __name__ == '__main__':
 2    # Specify the fmm_cache parameter as True when building the net, which means pre-calculation is performed when building the net object this time
 3    # Please pay attention to the encoding of the shp file, you can specify the encoding explicitly to ensure that the fields are not garbled
 4    link = gpd.read_file(r'./data/input/net/xian/modifiedConn_link.shp')
 5    node = gpd.read_file(r'./data/input/net/xian/modifiedConn_node.shp')
 6    my_net = Net(link_gdf=link,
 7                 node_gdf=node,
 8                 fmm_cache=True, fmm_cache_fldr=r'./data/input/net/xian/', recalc_cache=False)
 9    my_net.init_net()  # net initialization
10
11    # recalc_cache=False means to read the precalculated results directly from fmm_cache_fldr, without repeating the precalculation process
12
13    # At this time, the incoming net contains the pre-calculated results, and the matching speed will be improved
14    mpm = MapMatch(net=my_net, gps_buffer=100, flag_name='xa_sample',
15           use_sub_net=True, use_heading_inf=True, omitted_l=6.0,
16           del_dwell=True, dwell_l_length=50.0, dwell_n=0,
17           export_html=True, export_geo_res=True, use_gps_source=True,
18           export_all_agents=False,
19           out_fldr=r'./data/output/match_visualization/xa_sample', dense_gps=False,
20           gps_radius=15.0)
21    match_res, may_error_info, error_info = mpm.execute(gps_df=gps_df)
22    print(match_res)

The meanings of the pre-calculation related parameters when building Net are as follows:

  • fmm_cache

    Whether to enable path cache pre-calculation, default False

  • cache_cn

    How many cores to use for path pre-calculation, default 2

  • fmm_cache_fldr

    The file directory for storing path pre-calculation results, default ./

  • recalc_cache

    Whether to recalculate the path cache, default True

  • cut_off

    Path search cutoff length, meters, default 1200.0m

  • cache_name

    The name of the path pre-storage flag, default cache, the names of the two cache files: {cache_name}_path_cache, {cache_name}_prj

  • cache_slice

    Slice the cache (cut into cache_slice parts) and convert the format for storage (to prevent memory overflow caused by large-scale road networks), default 2 * cache_cn, if memory overflow, you can increase this value

6.6. Accelerated Matching - Enable Multi-core for Parallel Matching

If you want to enable parallel matching on multiple tracks, please replace mpm.execute() with mpm.multi_core_execute(core_num=x). When the number of your agents is greater than 50, the efficiency improvement of multi-core will be more obvious

 1# 1. 从gotrackit导入相关模块Net, MapMatch
 2import pandas as pd
 3import geopandas as gpd
 4from gotrackit.map.Net import Net
 5from gotrackit.MapMatch import MapMatch
 6
 7
 8if __name__ == '__main__':
 9
10    # 1. Read GPS data
11    # This is a file with GPS data of 150 vehicles
12    gps_df = pd.read_csv(r'./data/output/gps/150_agents.csv')
13    print(gps_df)
14
15    # 2.To build a net, the road network link layer and road network node layer must be in WGS-84, EPSG:4326 geographic coordinate system
16    # Please pay attention to the encoding of the shp file. You can specify the encoding to ensure that there is no garbled code in the field.
17    link = gpd.read_file(r'./data/input/net/xian/modifiedConn_link.shp')
18    node = gpd.read_file(r'./data/input/net/xian/modifiedConn_node.shp')
19    my_net = Net(link_gdf=link,
20                 node_gdf=node,
21                 fmm_cache=True, fmm_cache_fldr=r'./data/input/net/xian/', recalc_cache=False)
22    my_net.init_net()  # net initialization
23
24    # 3. map-match
25    mpm = MapMatch(net=my_net, gps_buffer=100, flag_name='xa_sample',
26           use_sub_net=True, use_heading_inf=True,
27           omitted_l=6.0, del_dwell=True, dwell_l_length=25.0, dwell_n=1,
28           lower_n=2, is_lower_f=True,
29           is_rolling_average=True, window=3,
30           dense_gps=False,
31           export_html=False, export_geo_res=False, use_gps_source=False,
32           out_fldr=r'./data/output/match_visualization/xa_sample',
33           gps_radius=10.0)
34
35    match_res, may_error_info, error_info = mpm.multi_core_execute(gps_df=gps_df, core_num=6)
36    print(match_res)
37    match_res.to_csv(r'./data/output/match_visualization/xa_sample/match_res.csv', encoding='utf_8_sig', index=False)
  • core_num

    How many cores to use for matching, default is 1

6.7. Accelerated matching - simplified road network line-geo

You can use the following method to simplify the geometry of the road network link layer

 1import pandas as pd
 2import geopandas as gpd
 3from gotrackit.map.Net import Net
 4from gotrackit.MapMatch import MapMatch
 5
 6
 7if __name__ == '__main__':
 8
 9    link = gpd.read_file(r'./data/input/net/xian/modifiedConn_link.shp')
10    node = gpd.read_file(r'./data/input/net/xian/modifiedConn_node.shp')
11
12    # Simplify the line type appropriately. The unit of x in simplify(x) is m.
13    # This interface will use the Douglas-Peucker algorithm to simplify the line type.
14    # If this value is too large, all links will degenerate into straight lines.
15    link = link.to_crs('The coordinate system of your chosen planar projection')
16    link['geometry'] = link['geometry'].simplify(1.0)
17    link = link.to_crs('EPSG:4326')
18    my_net = Net(link_gdf=link, node_gdf=node)
19    my_net.init_net()  # net initialization
20
21    # map-match
22    mpm = MapMatch(net=my_net, gps_buffer=100, flag_name='xa_sample',
23           use_sub_net=True, use_heading_inf=True,
24           omitted_l=6.0, del_dwell=True, dwell_l_length=25.0, dwell_n=1,
25           lower_n=2, is_lower_f=True,
26           is_rolling_average=True, window=3,
27           dense_gps=False,
28           export_html=False, export_geo_res=False, use_gps_source=False,
29           out_fldr=r'./data/output/match_visualization/xa_sample',
30           gps_radius=10.0)
31
32    match_res, may_error_info, error_info = mpm.execute(gps_df=gps_df)
33    print(match_res)
34    match_res.to_csv(r'./data/output/match_visualization/xa_sample/match_res.csv', encoding='utf_8_sig', index=False)

6.8. Accelerate matching - use hierarchical index to accelerate spatial association efficiency

Suitable for long trajectory matching under ultra-large-scale networks, which can reduce the spatial association time overhead of sub-networks. When initializing Net, specify is_hierarchical as True to enable spatial hierarchical indexing

6.9. Use grid parameters to determine reasonable matching parameters

This package supports grid search for the following four parameters in the map matching interface:

beta, gps_sigma, omitted_l, use_heading_inf

That is: traverse the possible combinations of these four parameters until there are no warnings in the matching result. If all parameter combinations have warnings, the matching result of the last parameter combination will be output, and the matching result will also return the number of matching warnings corresponding to the parameter combination

Using grid parameter search, you only need to build a grid parameter class and specify the value list of each parameter

 1import pandas as pd
 2import geopandas as gpd
 3from gotrackit.map.Net import Net
 4from gotrackit.MapMatch import MapMatch
 5from gotrackit.model.Para import ParaGrid
 6
 7
 8if __name__ == '__main__':
 9
10    gps_df = gpd.read_file(r'./data/output/gps/dense_example/test999.geojson')
11
12    link = gpd.read_file(r'./data/input/net/xian/modifiedConn_link.shp')
13    node = gpd.read_file(r'./data/input/net/xian/modifiedConn_node.shp')
14    my_net = Net(link_gdf=link, node_gdf=node, fmm_cache=True,
15             recalc_cache=False, fmm_cache_fldr=r'./data/input/net/xian')
16    my_net.init_net()
17
18
19    # 3. Create a new grid parameter object
20    # Specify the parameter value range list
21    # Four parameter lists can be specified
22    # beta_list: list[float] = None，gps_sigma_list: list[float] = None
23    # use_heading_inf_list: list[bool] = None，omitted_l_list: list[float] = None
24    pgd = ParaGrid(use_heading_inf_list=[False, True], beta_list=[0.1, 1.0], gps_sigma_list=[1.0, 5.0])
25
26    # 4. map-match
27    # 传入网格参数：use_para_grid=True, para_grid=pgd
28     mpm = MapMatch(net=my_net, is_rolling_average=True, window=2, flag_name='dense_example',
29               export_html=True, export_geo_res=True,
30               gps_buffer=400,
31               out_fldr=r'./data/output/match_visualization/dense_example',
32               dense_gps=True,
33               use_sub_net=True, dense_interval=50.0, use_gps_source=False, use_heading_inf=True,
34               gps_radius=15.0, use_para_grid=True, para_grid=pgd)
35    res, warn_info, error_info = mpm.execute(gps_df=gps_df)
36    print(res)
37    print(warn_info)
38    print(error_info)
39    print(pd.DataFrame(pgd.search_res))
40    res.to_csv(r'./data/output/match_visualization/dense_example/match_res.csv', encoding='utf_8_sig', index=False)
41
42    # You can view the number of warnings during the matching process under different parameter combinations
43    print(pd.DataFrame(pgd.search_res))

When matching using parameter grid, the system will automatically combine parameters and output the number of warnings under different parameter combinations:

_images/para_grid.jpg

6.10. Visualization of matching results

6.10.1 HTML animation visualization

The parameter export_html in the map matching interface controls whether to output HTML animation (more time-consuming)

HTML visualization requires network connection, use a browser to open the generated html file, and click on the timeline player according to the figure below

_images/%E5%8F%AF%E8%A7%86%E5%8C%96%E6%93%8D%E4%BD%9C.gif
_images/show.png

The html visualization file is an important file for us to check the matching results. It can clearly show the matching process:

gotrackit map matching package parameter detailed explanation and problem troubleshooting

6.10.2 geojson vector file visualization

The parameter export_geo_res in the map matching interface controls whether to output the matching result geojson vector layer (more time-consuming). The matching vector result of an agent consists of four files:

{flag_name}-{agent_id}-gps.geojson: gps point vector layer

{flag_name}-{agent_id} -match_link.geojson: match link vector layer

{flag_name}-{agent_id}-prj_l.geojson: projection line vector layer

{flag_name}-{agent_id}-prj_p.geojson: road segment matching point vector layer

{flag_name}-{agent_id}-heading_vec.geojson: road segment matching point heading vector

Can be visualized using GIS software, such as QGIS

_images/geojson_vis.png

6.11. Parameter adjustment method for incorrect matching results

6.11.1. Program prompts - less than two GPS points after preprocessing, unable to match

  • The parameters of dwell point recognition may be unreasonable

    Maybe your GPS data is high-frequency positioning data, and the distance between adjacent points is less than dwell_l_length. At this time, you happen to have turned on the dwell point recognition function, and all GPS data is deleted as dwell points. You need to turn off the dwell point recognition switch and then turn on data downsampling. Macro road network matching does not require such high-frequency GPS positioning.

  • It may be a source data problem

    It may be that the GPS data points of this vehicle are less than two

6.11.2. The matching path is not continuous in the html visualization result

  • It may be that the values of gps_buffer and top_k are too small (70% of the errors may be caused by this reason)

    Each GPS point establishes a circular buffer based on the specified gps_buffer. The road segments associated with the buffer are the preliminary candidate road segments of the GPS point. Then, based on the top_k parameter, the top_k road segments closest to the GPS point are selected from the preliminary candidate road segments as the final candidate road segments. If the positioning error of the GPS itself is large and these two values are set relatively small, the correct road segment may not be selected as the final candidate road segment, resulting in discontinuous matching paths

    If the densification parameter is enabled, generally speaking, it is best to increase the values of gps_buffer and top_k

  • It may be that the source track points are relatively sparse (the distance between adjacent GPS points is greater than 1000m), but the automatic densification of track points is not enabled

    Densify track points: dense_gps is specified as True; dense_interval is recommended to be 100 ~ 500, indicating that as long as the distance between adjacent GPS points exceeds dense_interval, densification will be performed between these two points

  • It may be that cut_off is selected too small

    cut_off is the path search cutoff value, the default is 1200m

  • It may be that the road network itself is not connected

    Check whether the road network is connected at the location where the path is disconnected. To check the connectivity, check the from_node and to_node field values of the link layer file

  • It may be a problem with the time column of the GPS data

    It may be that the positioning time accuracy of your GPS data is not enough, such as the positioning time of the two points before and after is 2023-11-12 17:30, or both are 2023-11-12 17:30:55, this package will sort by time column when constructing GPS objects. The same positioning time may cause the actual order of two points to be reversed, thus affecting the matching, so make sure that the positioning time of your GPS data does not have the same value

  • It may be that the stop point identification parameter settings are unreasonable

    Cause some normal positioning points to be identified as stop points and then deleted

  • It may be that the gps_sigma and beta settings are unreasonable

    We call the distance from the GPS point to the candidate section prj_dis

    beta represents the penalty for discontinuity in matching paths. The larger this value is, the smaller the penalty is. When the GPS data error is large, there may be path discontinuity. At this time, you can reduce beta, increase the penalty for discontinuity, and increase gps_sigma (gps_sigma represents the penalty for prj_dis. The smaller the gps_sigma value is, the greater the penalty for prj_dis is), weakening the impact of GPS point positioning errors

    Reduce beta, increase gps_sigma, that is, increase gps_sigma/beta: The intuitive meaning is that it pays more attention to the continuity of the path and can tolerate a larger prj_dis (i.e., a larger positioning error)

    Increase beta and decrease gps_sigma, that is, reduce gps_sigma/beta: The intuitive meaning is that the algorithm tends to choose the road section with a small prj_dis as the matching result, and does not pay attention to the path continuity of the matching result. When gps_sigma approaches 0 and beta approaches infinity, the matching algorithm degenerates into the nearest neighbor matching

    Note: The size of gps_sigma and beta is relative. Generally, the default gps_sigma and beta are reasonable. Beta should not be less than 3, and gps_sigma should not be less than 15

  • It may be that the not_conn_cost value is small when initializing the net

    This represents the penalty for path discontinuity. The larger the value, the greater the penalty, and the less likely it is to transfer to a discontinuous road section

  • The path cache is not updated

    The path cache is enabled. After the road network structure changes, the path cache is not recalculated. The cache of the old version of the road network is actually used.

  • Direction restriction may not be enabled

    Using_heading_inf is not enabled, or the heading_para_array setting is unreasonable

  • Direction restriction is enabled but reasonable stop point deletion parameters and frequency reduction parameters are not selected

    Using_heading_inf is enabled, but the calculation of the differential heading angle is affected by the stop point at the intersection, resulting in distortion of the differential heading angle calculation

7. Real-time map matching

7.1. The difference between real-time and offline

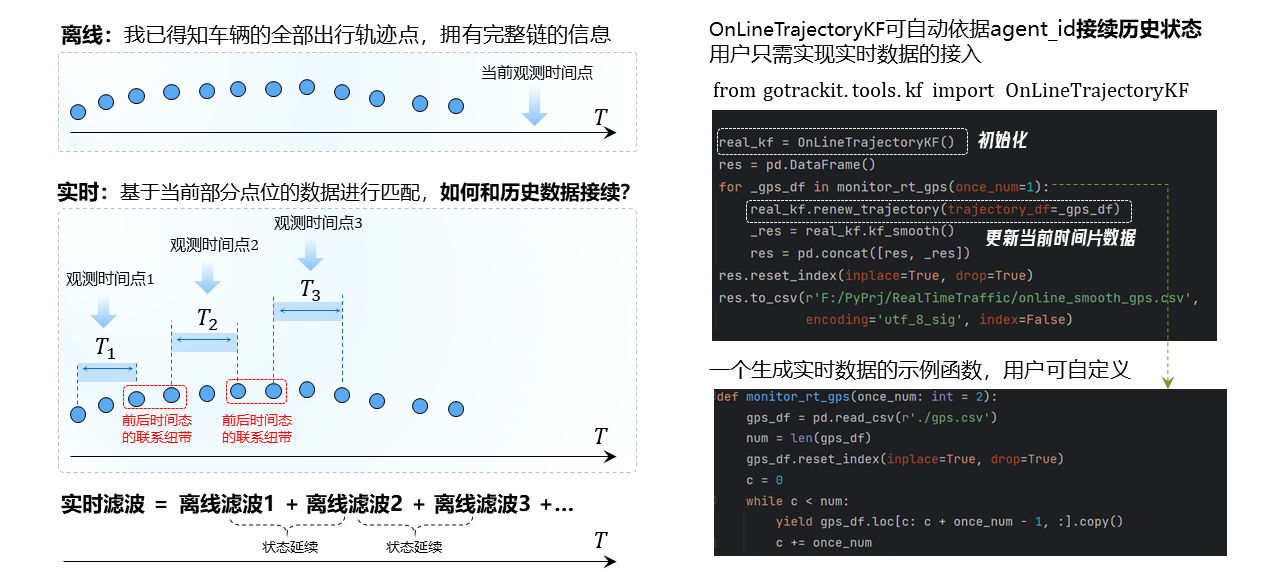

Real-time Kalman filter:

_images/%E5%AE%9E%E6%97%B6%E5%8D%A1%E5%B0%94%E6%9B%BC%E6%BB%A4%E6%B3%A2.png

Real-time matching:

_images/%E5%AE%9E%E6%97%B6%E5%8C%B9%E9%85%8D.png

7.2. Real-time Kalman filter

To use the real-time Kalman filter, you need to introduce the OnLineTrajectoryKF class, which treats vehicle positioning points with the same agent_id as the same probability chain. The sample code is as follows

 1# 1. 从gotrackit导入相关模块
 2import pandas as pd
 3from gotrackit.tools.kf import OnLineTrajectoryKF
 4
 5# 这是一个接入实时GPS数据的示例函数，用户需要自己依据实际情况去实现他
 6def monitor_rt_gps(once_num: int = 2):
 7    gps_df = pd.read_csv(r'./gps.csv')
 8    num = len(gps_df)
 9    gps_df.reset_index(inplace=True, drop=True)
10    c = 0
11    while c < num:
12        yield gps_df.loc[c: c + once_num - 1, :].copy()
13        c += once_num
14
15if __name__ == '__main__':
16
17    ol_kf = OnLineTrajectoryKF()
18    res = pd.DataFrame()
19    for _gps_df in monitor_rt_gps(once_num=1):
20        if rt_gps_df.empty:
21            continue
22        ol_kf.renew_trajectory(trajectory_df=_gps_df)
23        _res = ol_kf.kf_smooth()
24        res = pd.concat([res, _res])
25    res.reset_index(inplace=True, drop=True)
26    res.to_csv(r'./online_smooth_gps.csv', encoding='utf_8_sig', index=False)

7.3. Real-time matching interface

To use real-time map matching, you need to introduce the OnLineMapMatch class, which treats vehicle positioning points with the same agent_id as the same probability chain. The sample code is as follows

 1# 1. 从gotrackit导入相关模块
 2import pandas as pd
 3import geopandas as gpd
 4from gotrackit.map.Net import Net
 5from gotrackit.MapMatch import OnLineMapMatch
 6from gotrackit.tools.kf import OnLineTrajectoryKF
 7
 8# 这是一个接入实时GPS数据的示例函数，用户需要自己依据实际情况去实现它
 9def monitor_rt_gps(once_num: int = 2):
10    gps_df = pd.read_csv(r'./gps.csv')
11    num = len(gps_df)
12    gps_df.reset_index(inplace=True, drop=True)
13    c = 0
14    while c < num:
15        yield gps_df.loc[c: c + once_num - 1, :].copy()
16        c += once_num
17
18if __name__ == '__main__':
19
20    link = gpd.read_file('Link.shp')
21    node = gpd.read_file('Node.shp')
22    my_net = Net(link_gdf=link, node_gdf=node)
23    my_net.init_net()
24
25    # 新建一个实时匹配类别
26    ol_mpm = OnLineMapMatch(net=my_net, gps_buffer=50,
27                            out_fldr=r'./data/output/match_visualization/real_time/')
28
29    # 新建一个实时卡尔曼滤波器
30    ol_kf = OnLineTrajectoryKF()
31
32    c = 0
33    for rt_gps_df in monitor_rt_gps(once_num=2):
34        if rt_gps_df.empty:
35            continue
36        ol_mpm.flag_name = rf'real_time_{c}'
37
38        # 更新当前时刻接收到的定位数据
39        ol_kf.renew_trajectory(trajectory_df=rt_gps_df)
40
41        # 滤波平滑
42        gps_df = ol_kf.kf_smooth(p_deviation=0.002)
43
44        # 实时匹配
45        res, warn_info, error_info = ol_mpm.execute(gps_df=gps_df,  overlapping_window=3)

The execute function parameters of real-time map matching are explained as follows:

  • gps_df

    gps data

  • time_gap_threshold

    time threshold, default 1800.0s, if the difference between the earliest positioning time of the current GPS data of an agent and the latest positioning time of the previous batch of GPS data exceeds this value, the historical probability chain will not be referenced for matching calculation

  • dis_gap_threshold

    distance threshold, default 600.0m, if the distance between the earliest positioning point of the current GPS data of an agent and the latest positioning point of the previous batch of GPS data exceeds this value, the historical probability chain will not be referenced for matching calculation

  • overlapping_window: int = 3

    overlapping window length, default 3, overlapping window with historical GPS data
